Transaxle Side Oil Seal

  1. Remove the transfer assembly.

    (Refer to Transfer Assembly - "FRONT WHEEL TRANSFER ASSEMBLY ")

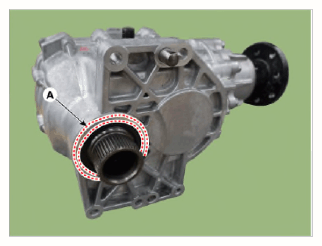

  2. Remove the oil seal (A).
    G15693824Courtesy of KIA MOTORS AMERICA, INC.

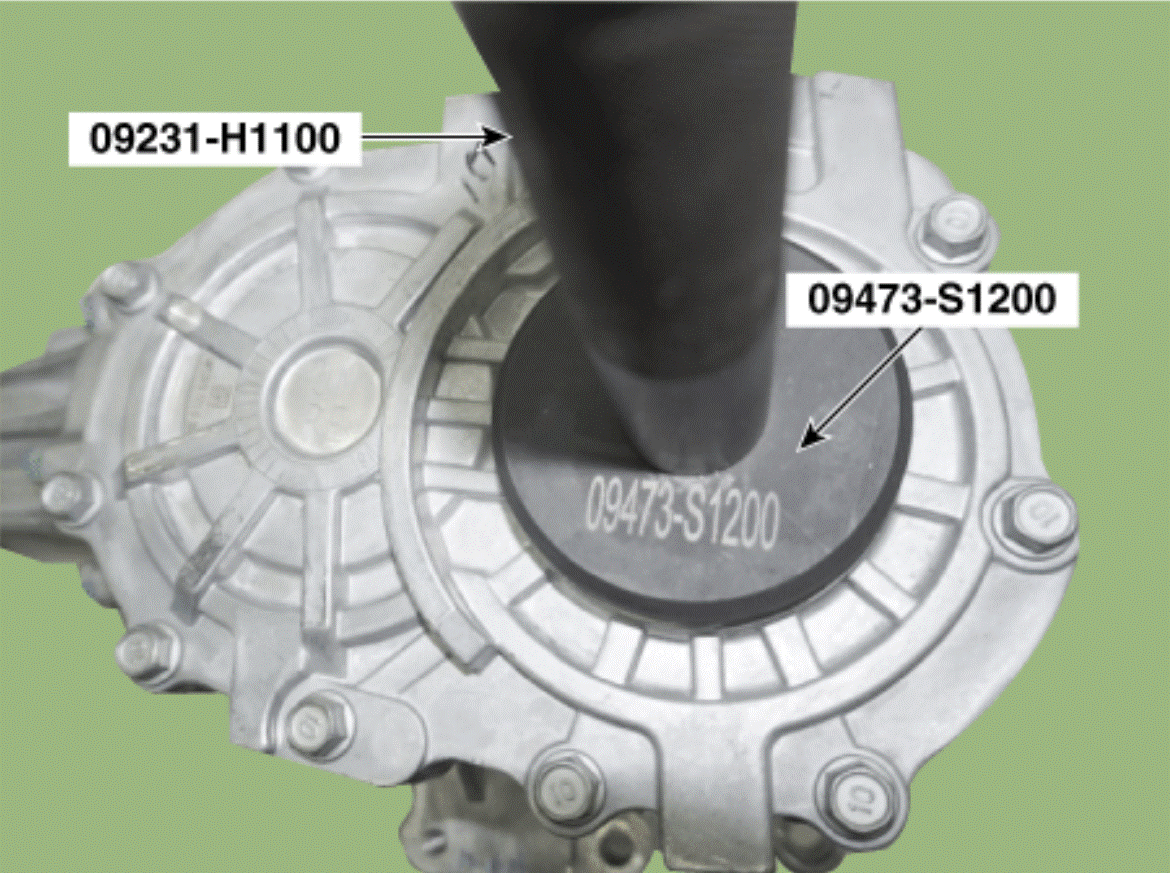

  3. Install the oil seal with special service tools.
    G15693825Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the special service tools.
  5. Install the transfer assembly.

    (Refer to Transfer Assembly - "FRONT WHEEL TRANSFER ASSEMBLY ")
