Driveshaft Side Oil Seal

  1. Remove the front drive shaft. (RH side)

    (Refer to Drive shaft and axle - "FRONT DRIVESHAFT ")

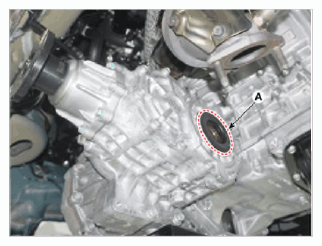

  2. Remove the dust cover (A).
    G15693821Courtesy of KIA MOTORS AMERICA, INC.

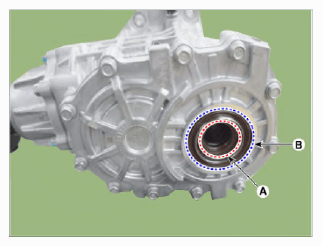

  3. Remove the oil seal (A, B).
    G15693822Courtesy of KIA MOTORS AMERICA, INC.

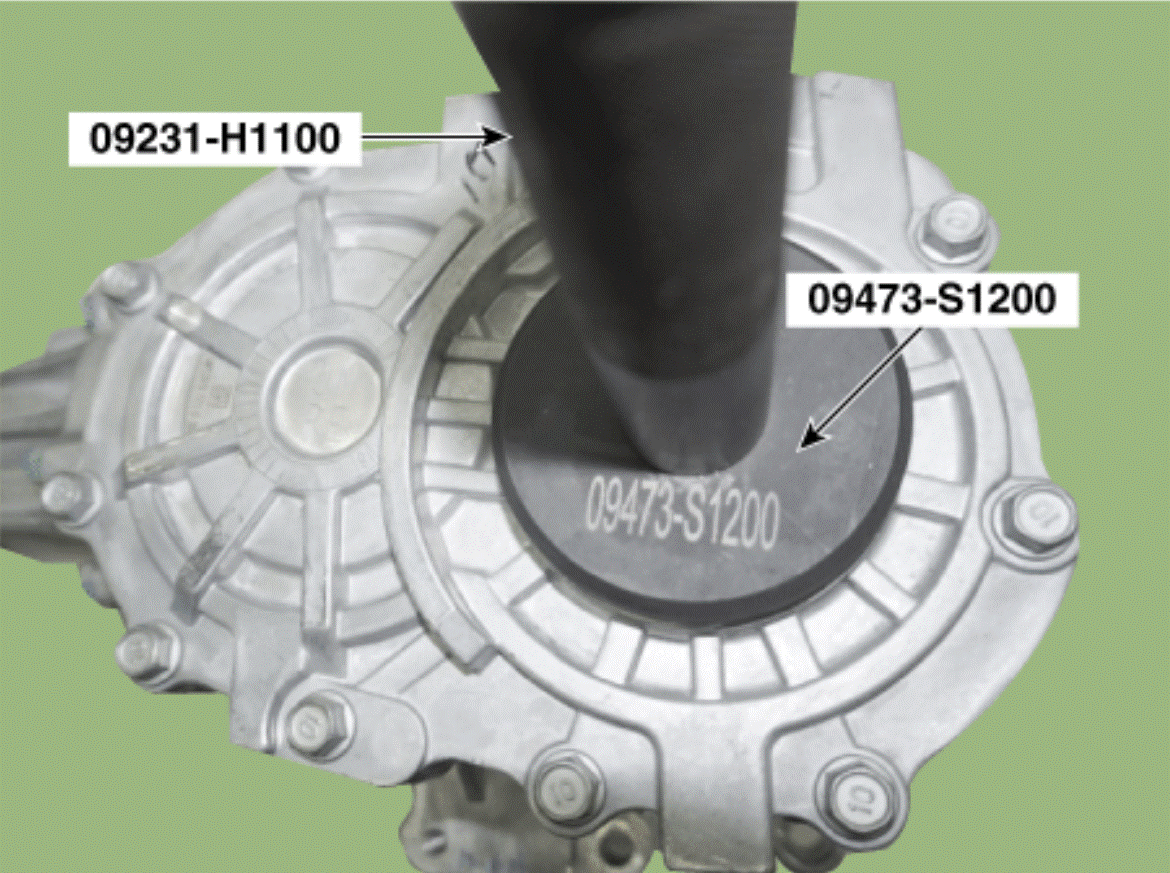

  4. Install the oil seal with special service tools.
    G15693823Courtesy of KIA MOTORS AMERICA, INC.
  5. Remove the special service tools.
  6. Install the new dust cover.
  7. Install the front drive shaft. (RH side)

    (Refer to Drive shaft and axle - "FRONT DRIVESHAFT ")
