Removal & Installation: Removal

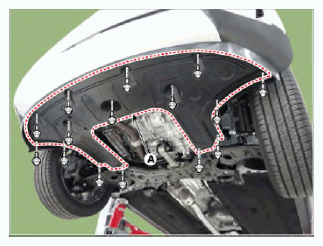

Remove the engine room front under cover (A) after removing the bolts.
Tightening torque:

7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)
