Transaxle Mounting Bracket

Remove the air duct.
(Refer to Intake and Exhaust System - "AIR CLEANER ASSEMBLY ")
Remove the battery and battery tray.
(Refer to Body Electrical System - "Battery ")
Remove the air cleaner assembly.
(Refer to Intake and Exhaust System - "AIR CLEANER ASSEMBLY ")
Remove the Engine Control Module (ECM).
(Refer to Engine Control/Fuel System - "ENGINE CONTROL MODULE (ECM) ")
Remove the engine room under cover.
(Refer to Engine And Transaxle Assembly - "ENGINE ROOM UNDER COVER ")
Install jack under the transaxle to support it.
NOTE: Insert a rubber block between jack and transaxle.

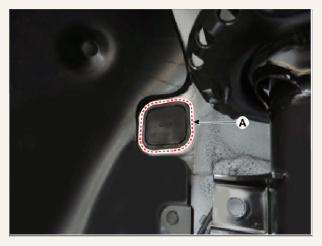

Remove the service cover (A).

Courtesy of KIA MOTORS AMERICA, INC.

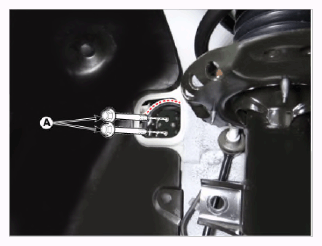

Remove the transaxle support bracket mounting bolt (A).
Tightening torque:

107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

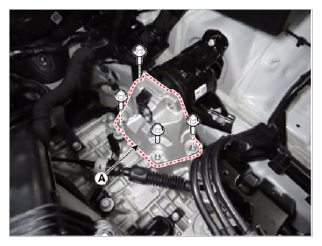

Remove the transaxle support bracket (A) after removing the bolts.
Tightening torque:

58.9 - 78.5 N.m (6.0 - 8.0 kgf.m, 43.4 - 57.9 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

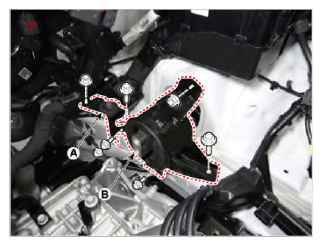

Remove the transaxle mounting bracket.
1. Remove the cleaner bracket (A) after removing the bolts.
2. Remove the transaxle mounting bracket (B) after removing the bolts and nuts.
  Tightening torque

  A: 7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb.ft)

  B: 63.7 - 83.4 (6.5 - 8.5 kgf.m, 47.0 - 61.5 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
