Engine Mounting Bracket

Disconnect the negative (-) battery terminal.
Remove the engine room under cover.
(Refer to Engine And Transaxle Assembly - "ENGINE ROOM UNDER COVER ")

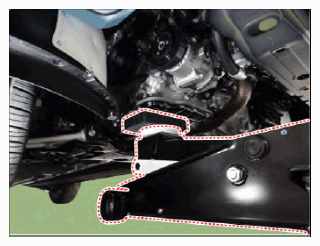

Install the jack to the edge of the lower oil pan to support the engine.

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Insert a rubber block between jack and upper oil pan.

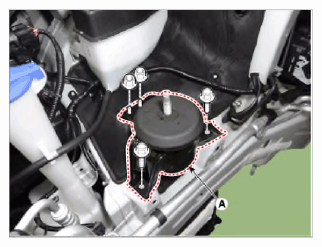

Remove the engine mounting support bracket (A) after removing the bolt and nuts.
Tightening torque:

88.3 - 107.9 N.m (9.0 - 11.0 kgf.m, 65.1 - 79.6 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

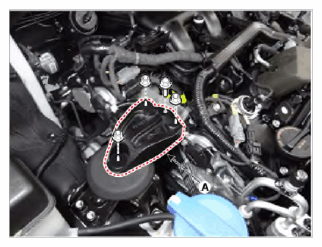

Remove the engine mounting bracket (A) after removing the bolts and nuts.
Tightening torque:

63.7 - 83.4 N.m (6.5 - 8.5 kgf.m, 47.0 - 61.5 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
