Removal & Installation: Removal

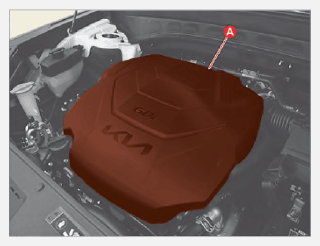

  1. Remove the engine cover (A).
G15692928Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
  • Lift up the lower end of engine cover, then left and right alternately.
  • When installing, check that the mounting rubber insulators are installed.
