Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Ignition "OFF".
  2. Connect KDS to "Data Link Connector (DLC)".
  3. Select the "Vehicle S/W Management" about related DTC with KDS.
  4. Perform "Oil-pressure Characteristics BackUp & Input (TCU Replacement)" and Go to "VERIFICATION OF REPAIR " procedure.

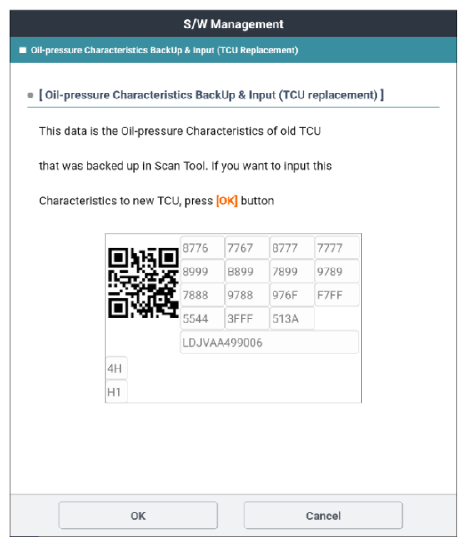

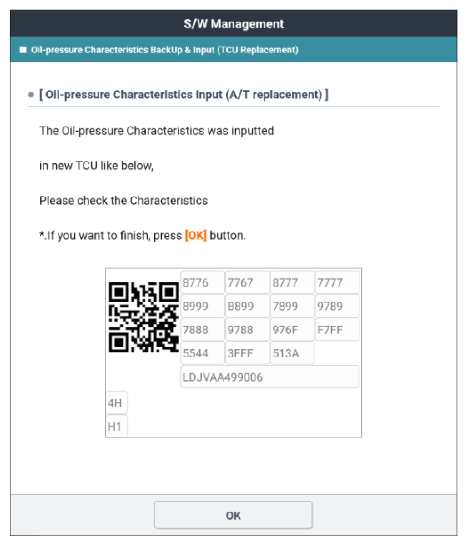

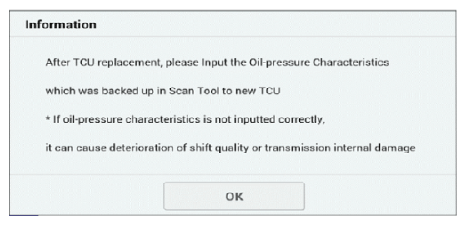

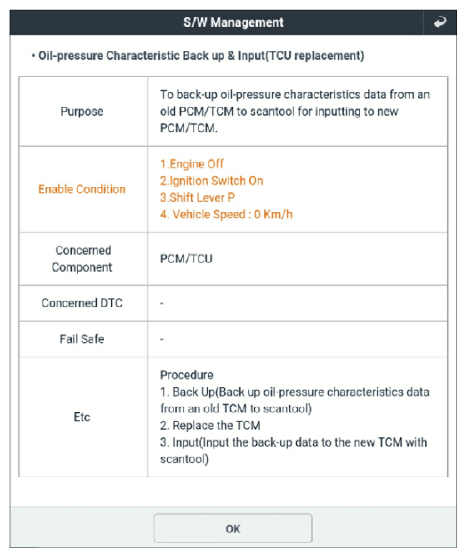

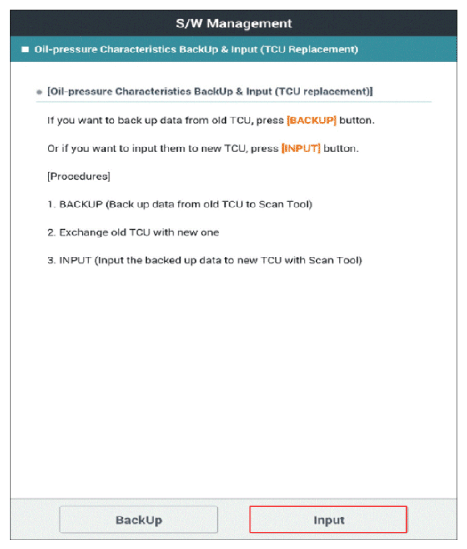

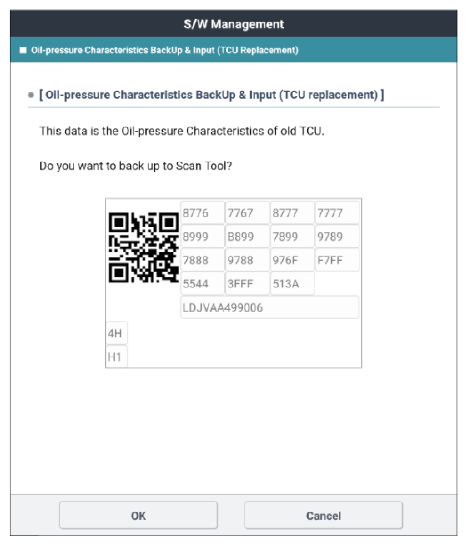

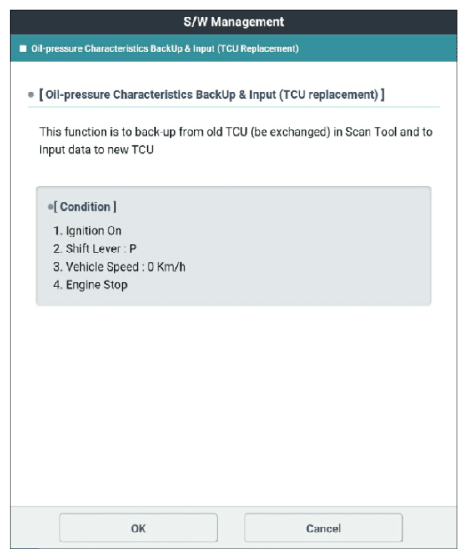

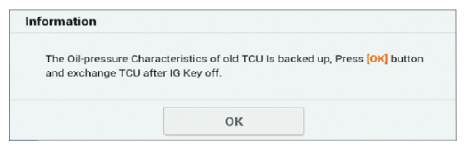

 Fig.1 to 9
G15727950Courtesy of KIA MOTORS AMERICA, INC.

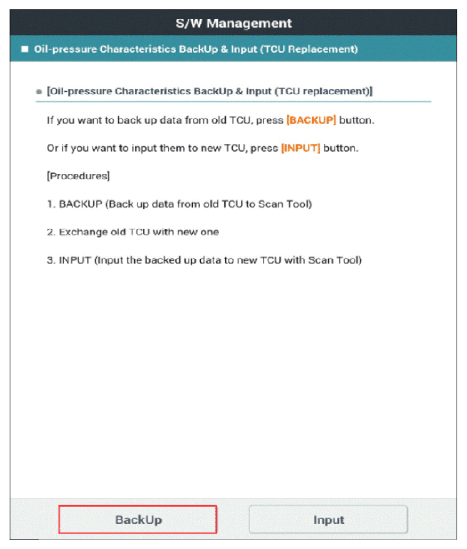

G15727951Courtesy of KIA MOTORS AMERICA, INC.
