Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Ignition "OFF".
  2. Connect KDS to "Data Link Connector (DLC)".
  3. Select the "Vehicle S/W Management" about related DTC with KDS.
  4. Perform "Oil-pressure Characteristics BackUp & Input (TCU Replacement)" and Go to "VERIFICATION OF REPAIR " procedure.
 Fig.1 to 9

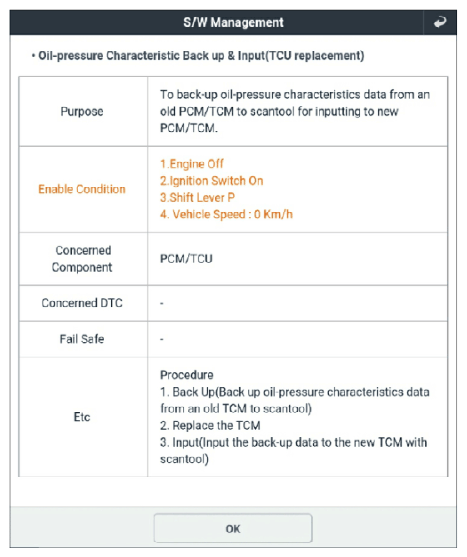

G15727927Courtesy of KIA MOTORS AMERICA, INC.

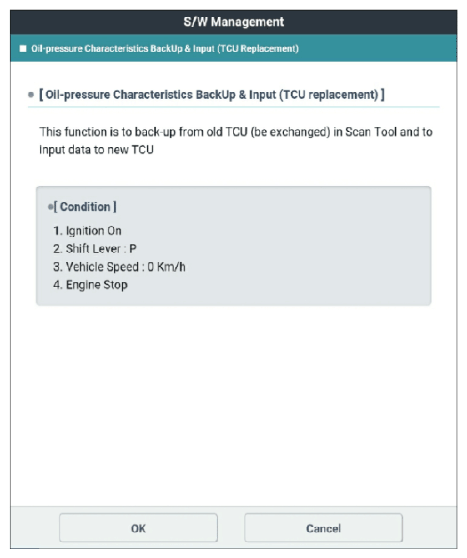

G15727928Courtesy of KIA MOTORS AMERICA, INC.

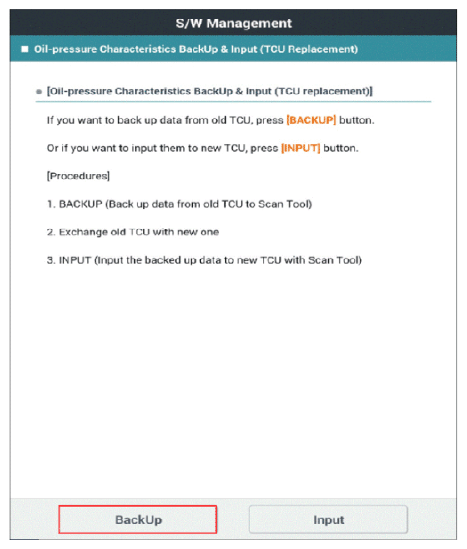

G15727929Courtesy of KIA MOTORS AMERICA, INC.

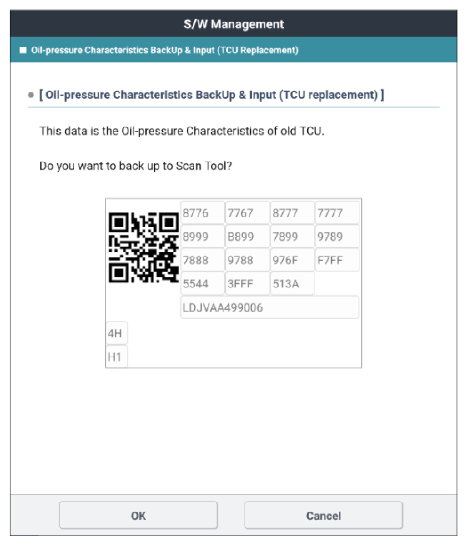

G15727930Courtesy of KIA MOTORS AMERICA, INC.

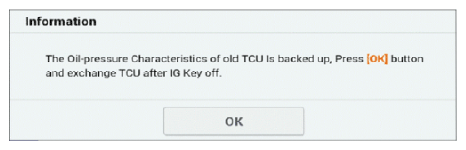

G15727931Courtesy of KIA MOTORS AMERICA, INC.

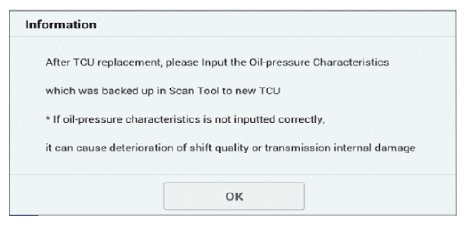

G15727932Courtesy of KIA MOTORS AMERICA, INC.

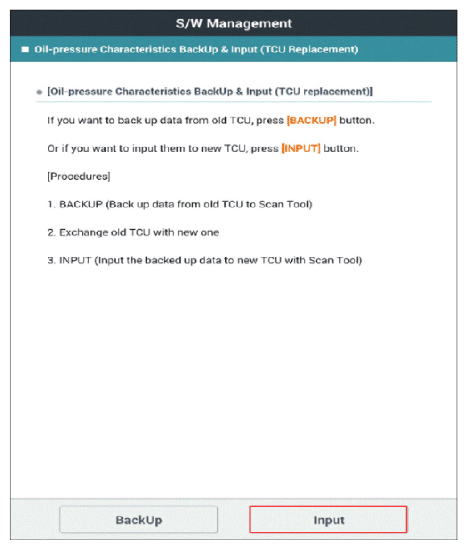

G15727933Courtesy of KIA MOTORS AMERICA, INC.

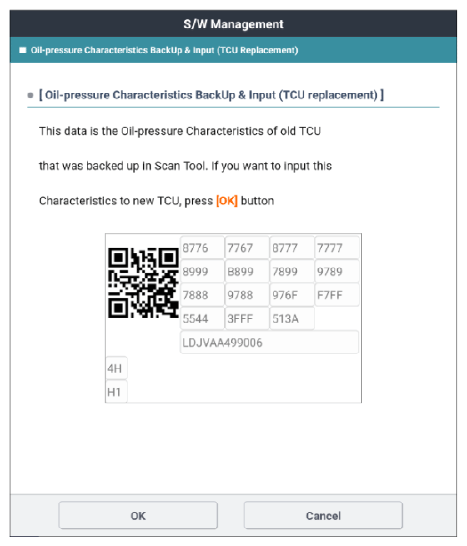

G15727934Courtesy of KIA MOTORS AMERICA, INC.

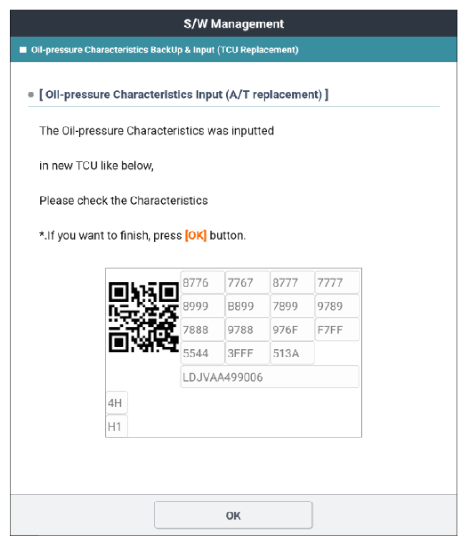

G15727935Courtesy of KIA MOTORS AMERICA, INC.
