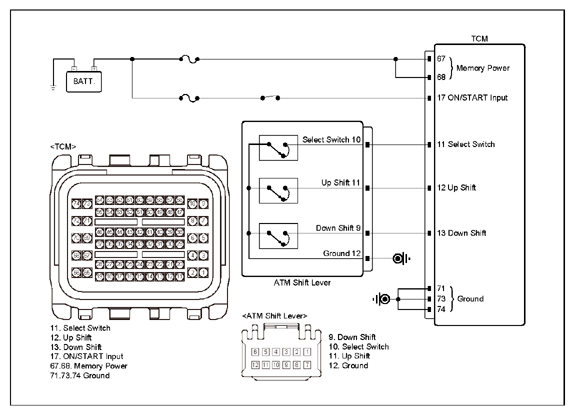

Circuit Inspection

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component.	TCM connector	11 (select switch)	ATM Shift lever switch connector	10 (select switch)	Approx. below 1Ω
	TCM connector	12 (up shift)	ATM Shift lever switch connector	11 (up shift)	Approx. below 1Ω
	TCM connector	13 (down shift)	ATM Shift lever switch connector	9 (down shift)	Approx. below 1Ω

Good

No Good

Repair open or short in circuit and then Go to "VERIFICATION OF REPAIR " procedure.
