Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Ignition "OFF".
  2. Connect KDS to "Data Link Connector (DLC)".
  3. Select the "Vehicle S/W Management" about related DTC with KDS.
  4. Perform "Oil-pressure Characteristics BackUp & Input (TCU Replacement)" and Go to "VERIFICATION OF REPAIR " procedure.
 Fig.1 to 9

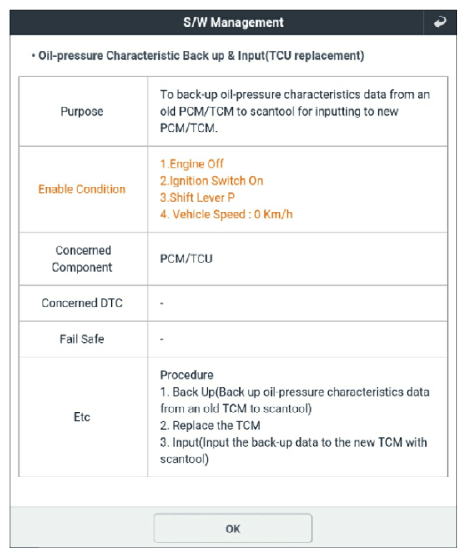

G15727914Courtesy of KIA MOTORS AMERICA, INC.

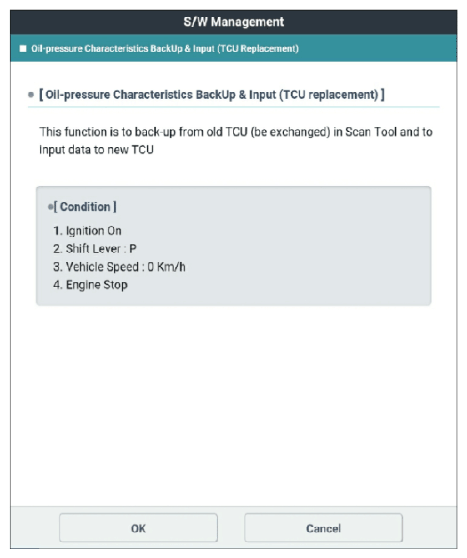

G15727915Courtesy of KIA MOTORS AMERICA, INC.

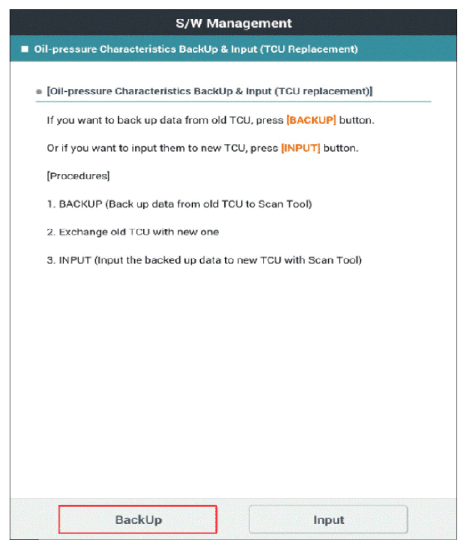

G15727916Courtesy of KIA MOTORS AMERICA, INC.

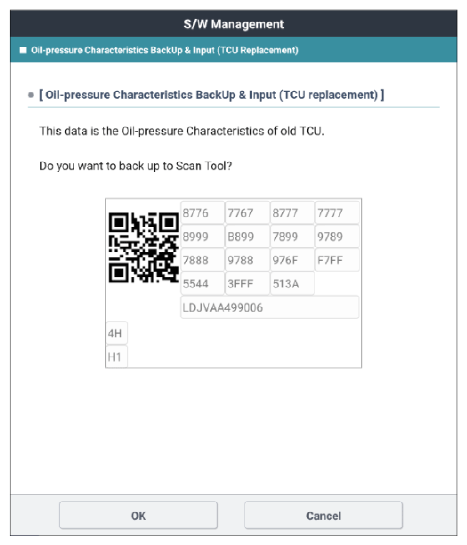

G15727917Courtesy of KIA MOTORS AMERICA, INC.

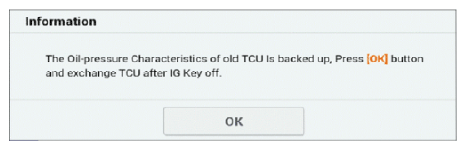

G15727918Courtesy of KIA MOTORS AMERICA, INC.

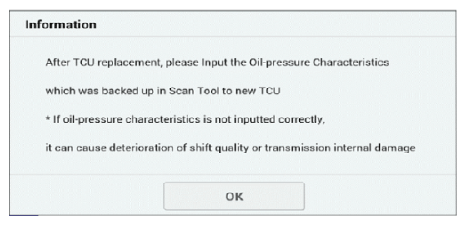

G15727919Courtesy of KIA MOTORS AMERICA, INC.

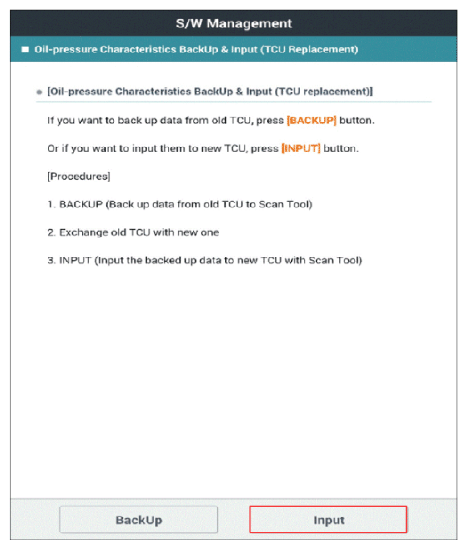

G15727920Courtesy of KIA MOTORS AMERICA, INC.

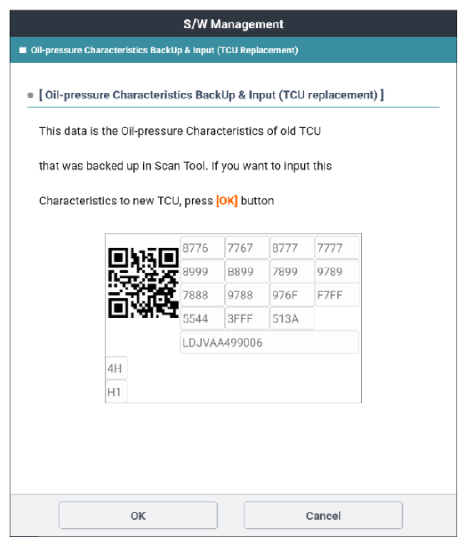

G15727921Courtesy of KIA MOTORS AMERICA, INC.

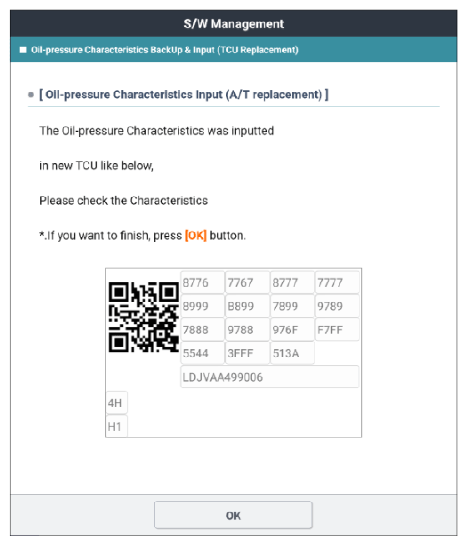

G15727922Courtesy of KIA MOTORS AMERICA, INC.
