Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Ignition "OFF".
  2. Connect KDS to "Data Link Connector (DLC)".
  3. Select the "Vehicle S/W Management" about related DTC with KDS.

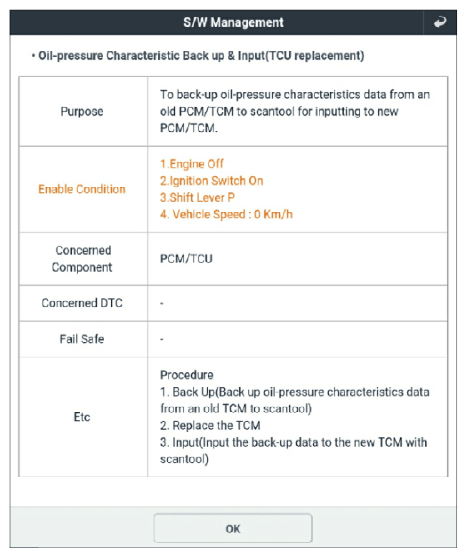

  4. Perform "Oil-pressure Characteristics BackUp & Input (TCU Replacement)" and Go to "VERIFICATION OF REPAIR " procedure.
 Fig.1 to 9
G15727900Courtesy of KIA MOTORS AMERICA, INC.

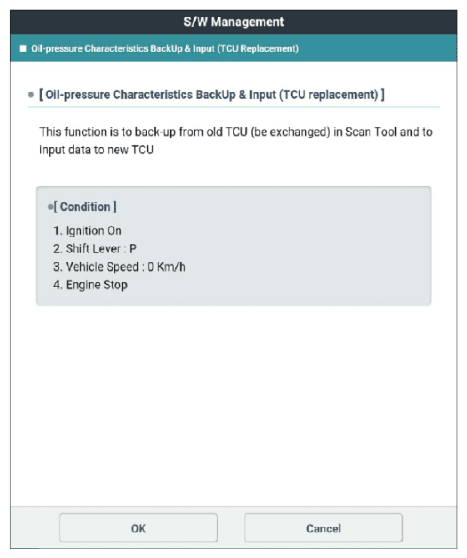

G15727901Courtesy of KIA MOTORS AMERICA, INC.

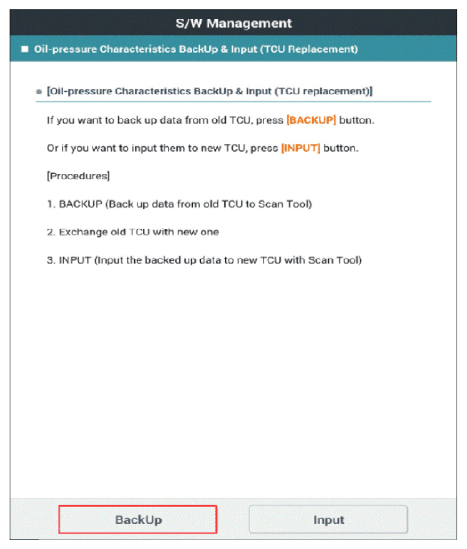

G15727902Courtesy of KIA MOTORS AMERICA, INC.

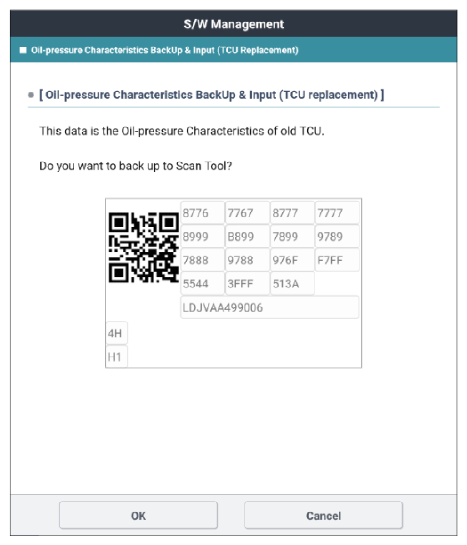

G15727903Courtesy of KIA MOTORS AMERICA, INC.

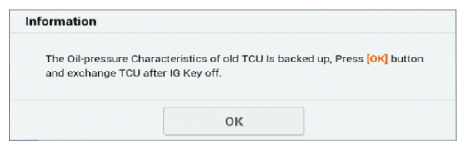

G15727904Courtesy of KIA MOTORS AMERICA, INC.

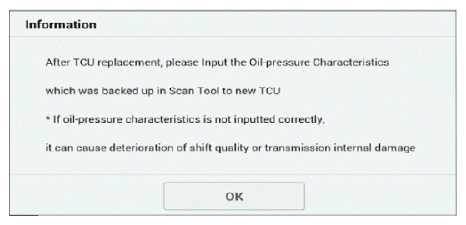

G15727905Courtesy of KIA MOTORS AMERICA, INC.

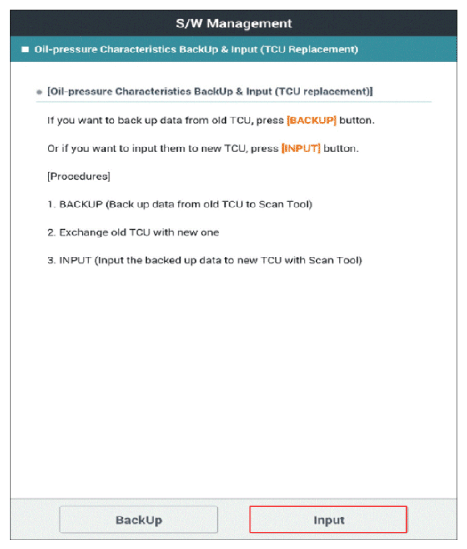

G15727906Courtesy of KIA MOTORS AMERICA, INC.

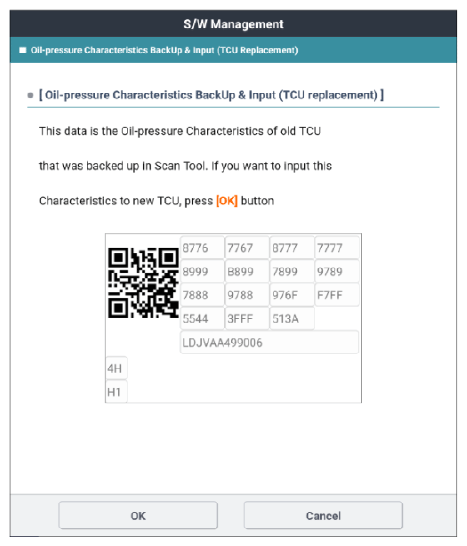

G15727907Courtesy of KIA MOTORS AMERICA, INC.

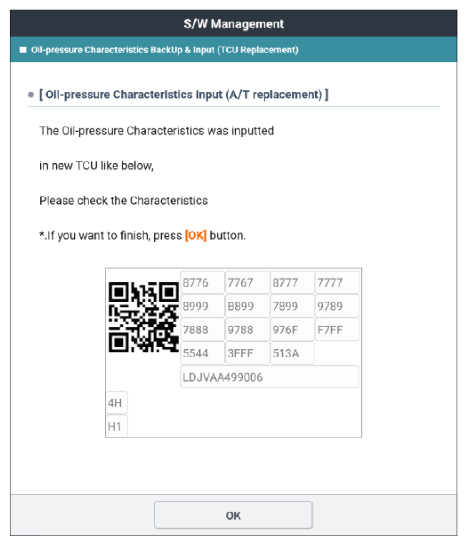

G15727908Courtesy of KIA MOTORS AMERICA, INC.
