Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Ignition "OFF".
  2. Connect KDS to "Data Link Connector (DLC)".
  3. Select the "Vehicle S/W Management" about related DTC with KDS.
  4. Perform "Oil-pressure Characteristics BackUp & Input (TCU Replacement)" and Go to "VERIFICATION OF REPAIR " procedure.
 Fig.1 to 9

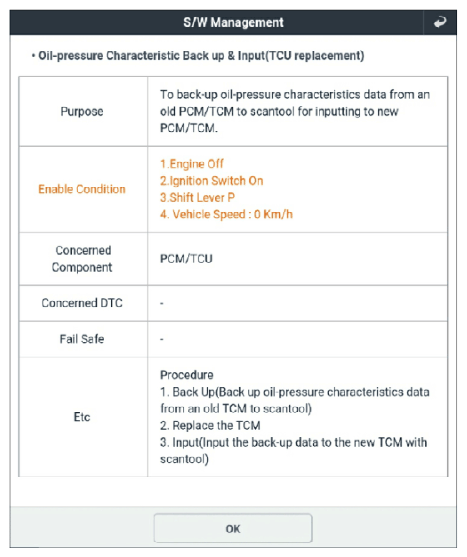

G15727880Courtesy of KIA MOTORS AMERICA, INC.

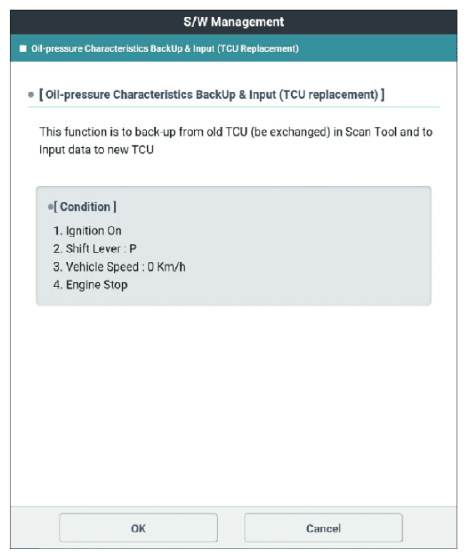

G15727881Courtesy of KIA MOTORS AMERICA, INC.

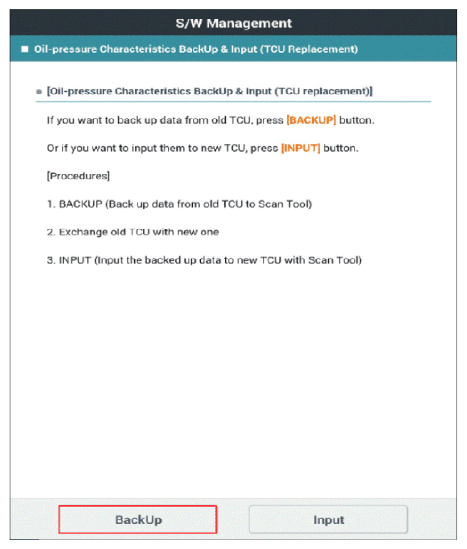

G15727882Courtesy of KIA MOTORS AMERICA, INC.

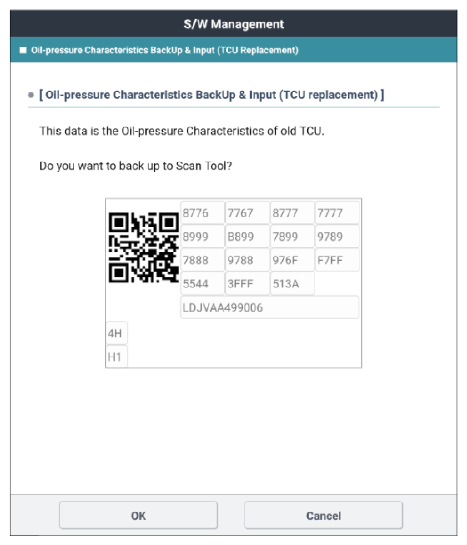

G15727883Courtesy of KIA MOTORS AMERICA, INC.

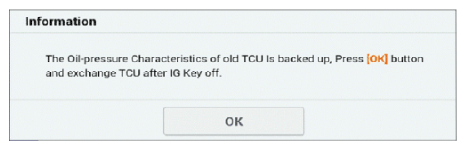

G15727884Courtesy of KIA MOTORS AMERICA, INC.

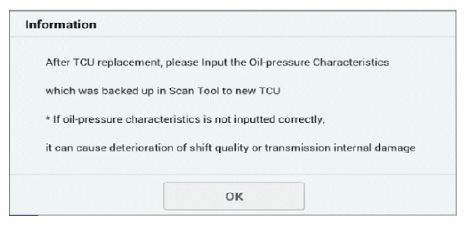

G15727885Courtesy of KIA MOTORS AMERICA, INC.

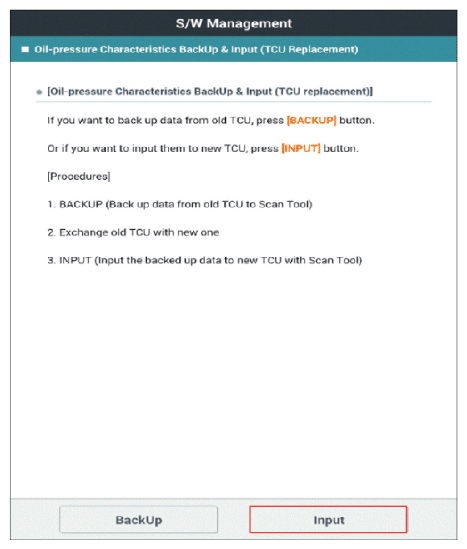

G15727886Courtesy of KIA MOTORS AMERICA, INC.

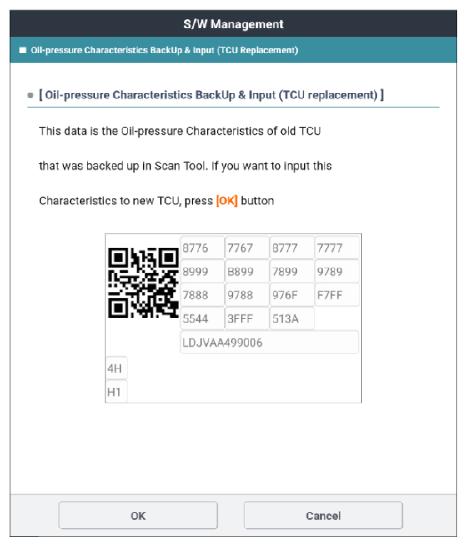

G15727887Courtesy of KIA MOTORS AMERICA, INC.

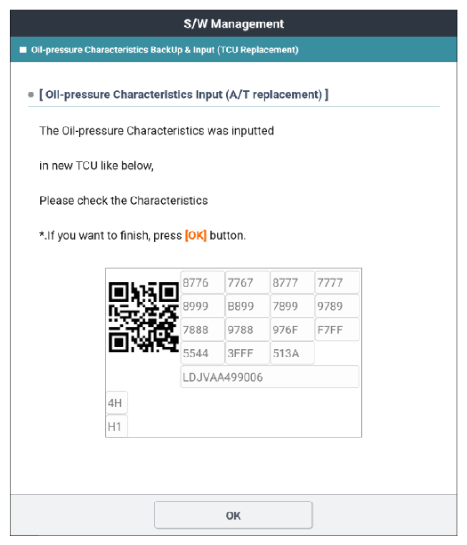

G15727888Courtesy of KIA MOTORS AMERICA, INC.
