DTC P0768-00: Shift Control Solenoid Valve 'D' Electrical (OD & LR): General Description

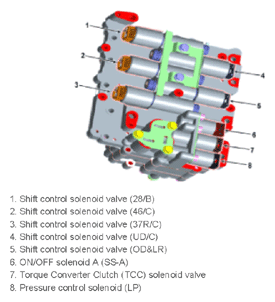

The shift control solenoid valve (OD & LR) is a variable hydraulic pressure control solenoid valve. In according to signals from the TCM, it routes the hydraulic pressure to control the OD clutch and LR brake.

	Solenoid Valve								Remark
	VFS							ON/OFF
	Direct Control VFS					Indirect Control VFS		ON/OFF
	VFS-28/B	VFS-46/C	VFS-37R/C	VFS-UD/C	VFS-OD/C & LR/B	VFS-T/CON	VFS-LINE	SS-A
P				◦			◦	•	•: Connected ◦: Variable Connected
N			•	•			◦	•
R				•			◦	•
1						◦	◦	•
2	•				•	◦	◦
3			•		•	◦	◦
4		•			•	◦	◦
5						◦	◦
6		•		•		◦	◦
7			•	•		◦	◦
8	•			•		◦	◦

Courtesy of KIA MOTORS AMERICA, INC.
