Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Ignition "OFF".
  2. Connect KDS to "Data Link Connector (DLC)".
  3. Select the "Vehicle S/W Management" about related DTC with KDS.
  4. Perform "Oil-pressure Characteristics BackUp & Input (TCU Replacement)" and Go to "VERIFICATION OF REPAIR " procedure.
 Fig.1 to 9

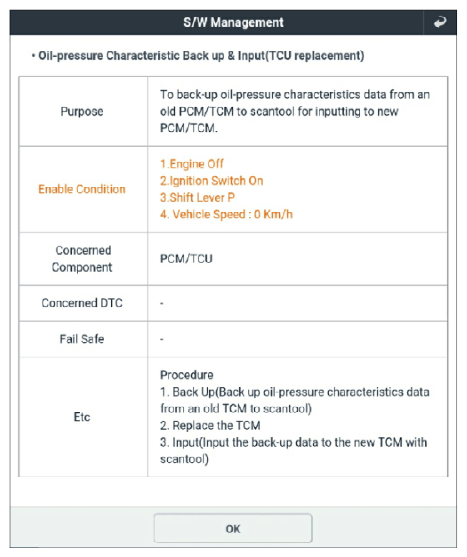

G15727854Courtesy of KIA MOTORS AMERICA, INC.

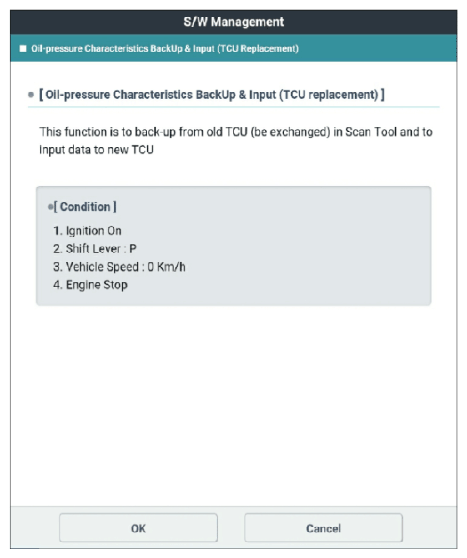

G15727855Courtesy of KIA MOTORS AMERICA, INC.

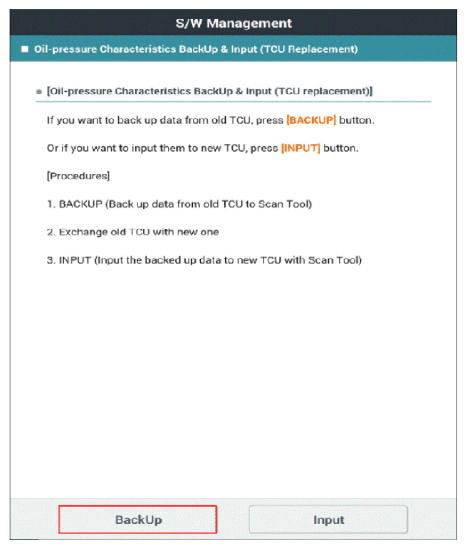

G15727856Courtesy of KIA MOTORS AMERICA, INC.

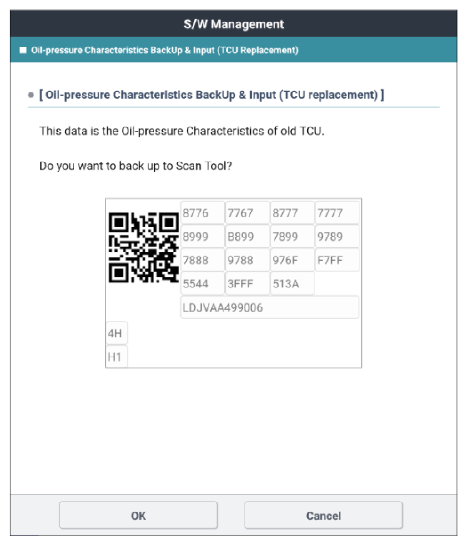

G15727857Courtesy of KIA MOTORS AMERICA, INC.

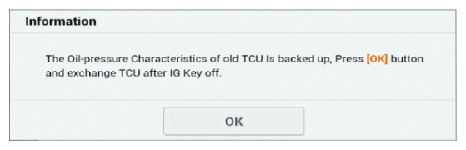

G15727858Courtesy of KIA MOTORS AMERICA, INC.

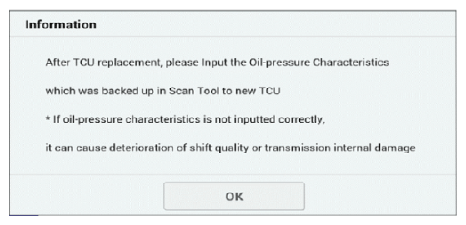

G15727859Courtesy of KIA MOTORS AMERICA, INC.

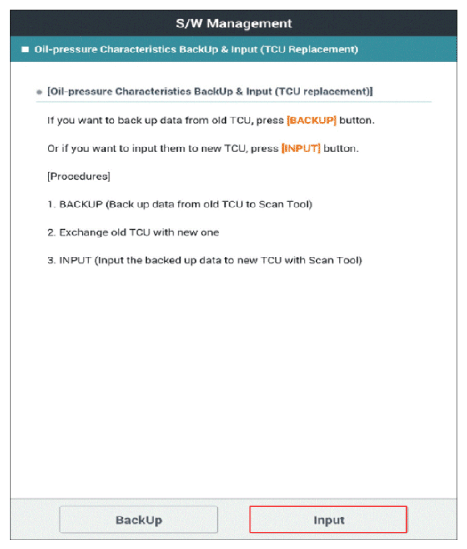

G15727860Courtesy of KIA MOTORS AMERICA, INC.

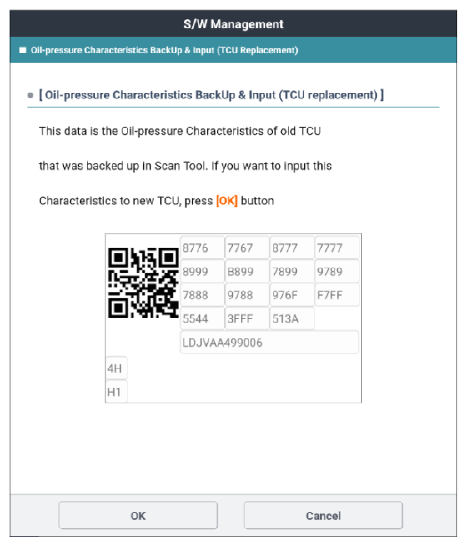

G15727861Courtesy of KIA MOTORS AMERICA, INC.

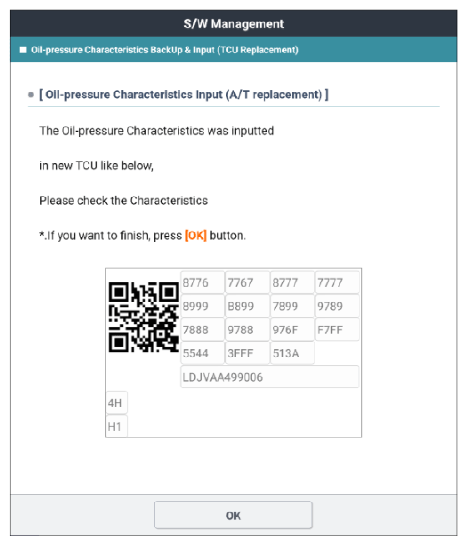

G15727862Courtesy of KIA MOTORS AMERICA, INC.
