Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Ignition "OFF".
  2. Connect KDS to "Data Link Connector (DLC)".
  3. Select the "Vehicle S/W Management" about related DTC with KDS.
  4. Perform "Oil-pressure Characteristics BackUp & Input (TCU Replacement)" and Go to "VERIFICATION OF REPAIR " procedure.

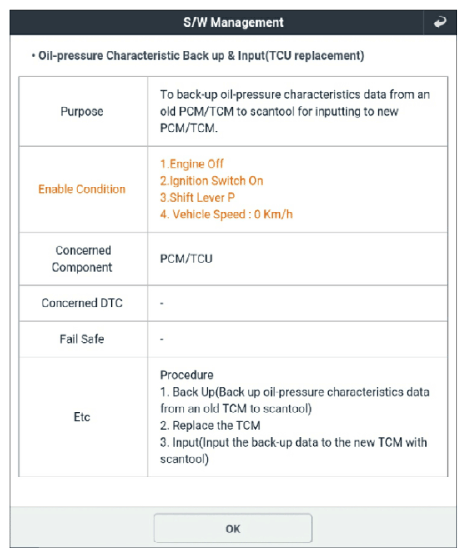

 Fig.1 to 9
G15727837Courtesy of KIA MOTORS AMERICA, INC.

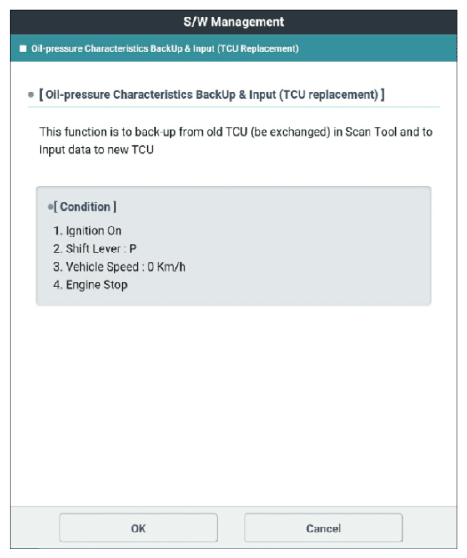

G15727838Courtesy of KIA MOTORS AMERICA, INC.

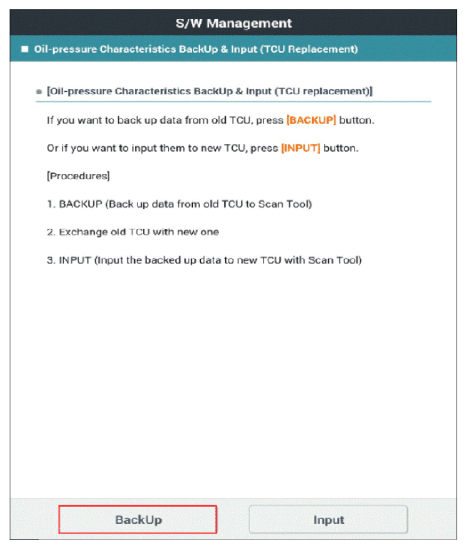

G15727839Courtesy of KIA MOTORS AMERICA, INC.

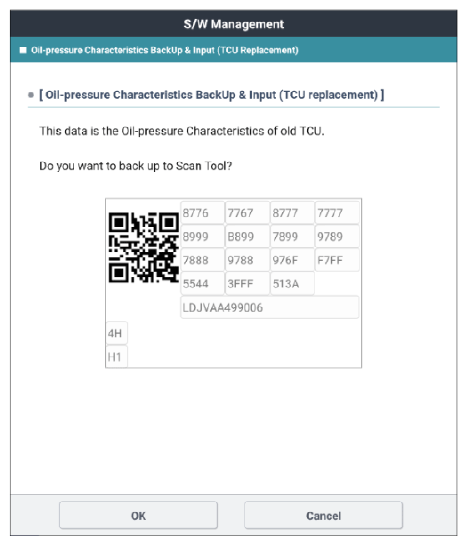

G15727840Courtesy of KIA MOTORS AMERICA, INC.

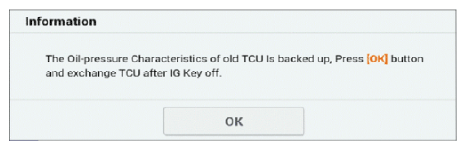

G15727841Courtesy of KIA MOTORS AMERICA, INC.

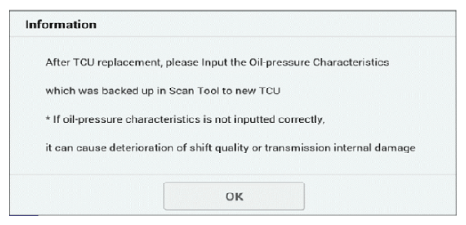

G15727842Courtesy of KIA MOTORS AMERICA, INC.

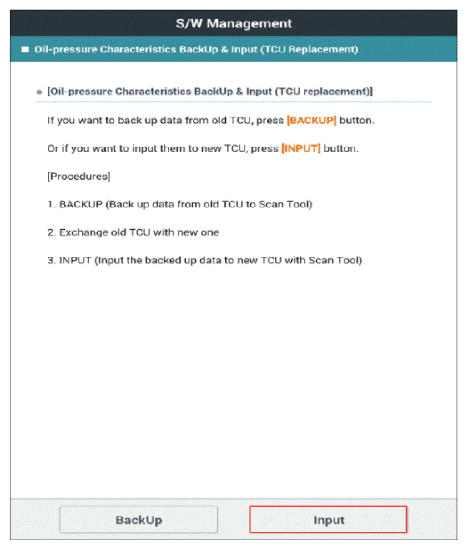

G15727843Courtesy of KIA MOTORS AMERICA, INC.

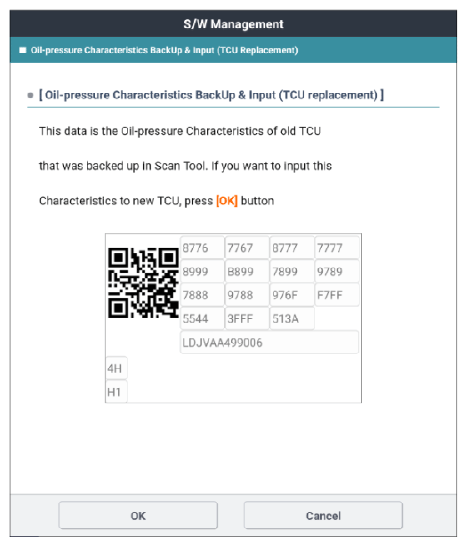

G15727844Courtesy of KIA MOTORS AMERICA, INC.

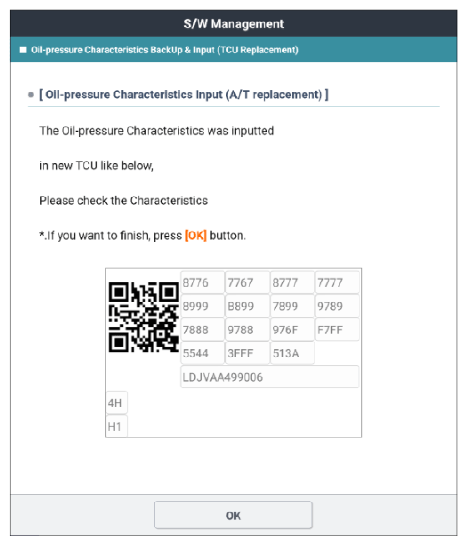

G15727845Courtesy of KIA MOTORS AMERICA, INC.
