Circuit Inspection

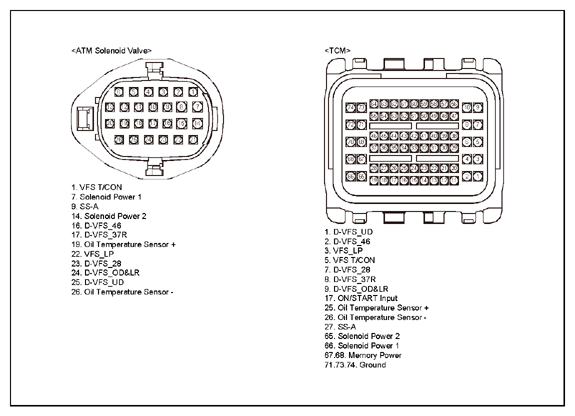

G15727817

Courtesy of KIA MOTORS AMERICA, INC.

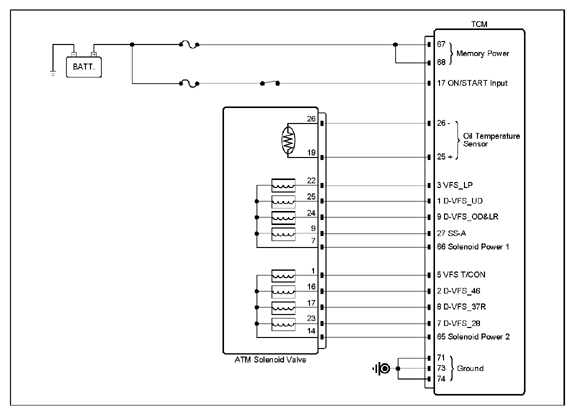

G15727818

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Disconnect the electrical connector(s) from the concerned component. Ignition "ON".	ATM solenoid valve connector	14 (power)	Chassis ground	-	Approx. 5.0V
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component.	ATM solenoid valve connector	16 (46/C)	Chassis ground	-	∞ (infinity)Ω
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component.	ATM solenoid valve connector	16 (46/C)	TCM connector	2 (46/C)	Approx. below 1Ω

Good

If problem still occurs, go to "COMPONENT INSPECTION " procedure.

No Good

Repair open or short in circuit and then Go to "VERIFICATION OF REPAIR " procedure.
