Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Ignition "OFF".
  2. Connect KDS to "Data Link Connector (DLC)".
  3. Select the "Vehicle S/W Management" about related DTC with KDS.
  4. Perform "Oil-pressure Characteristics BackUp & Input (TCU Replacement)" and Go to "VERIFICATION OF REPAIR " procedure.
 Fig.1 to 9

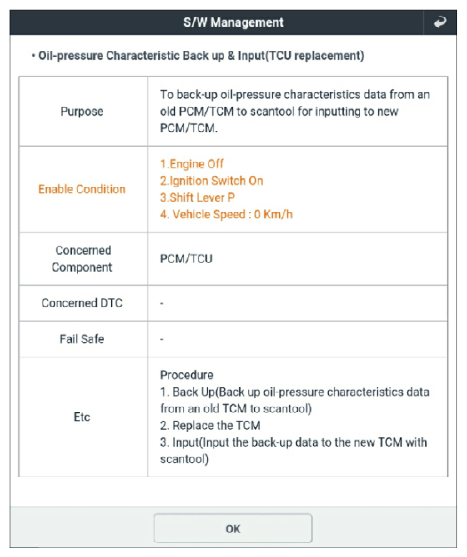

G15727820Courtesy of KIA MOTORS AMERICA, INC.

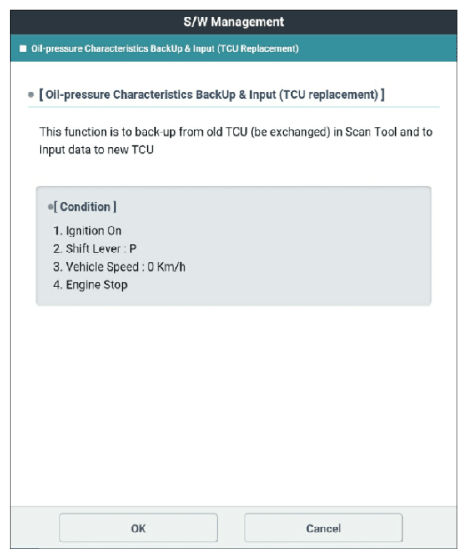

G15727821Courtesy of KIA MOTORS AMERICA, INC.

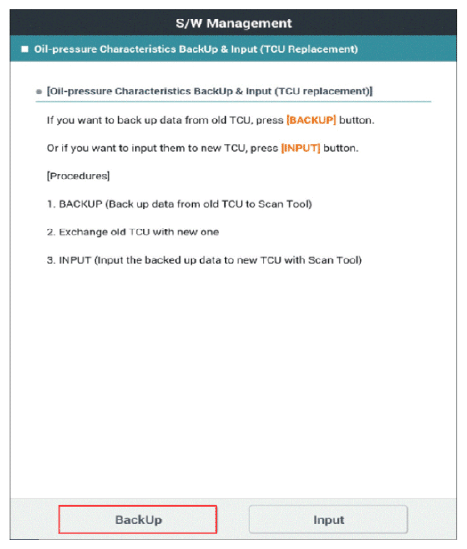

G15727822Courtesy of KIA MOTORS AMERICA, INC.

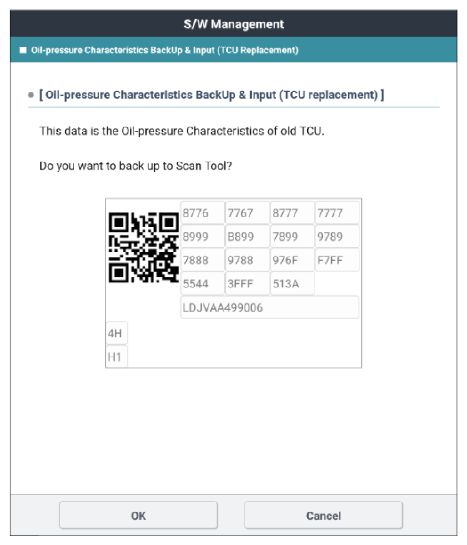

G15727823Courtesy of KIA MOTORS AMERICA, INC.

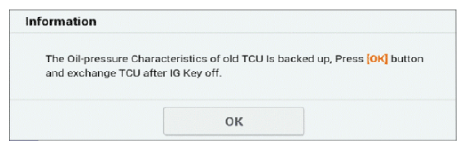

G15727824Courtesy of KIA MOTORS AMERICA, INC.

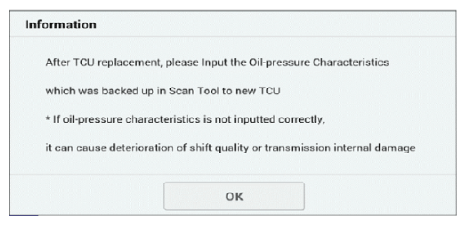

G15727825Courtesy of KIA MOTORS AMERICA, INC.

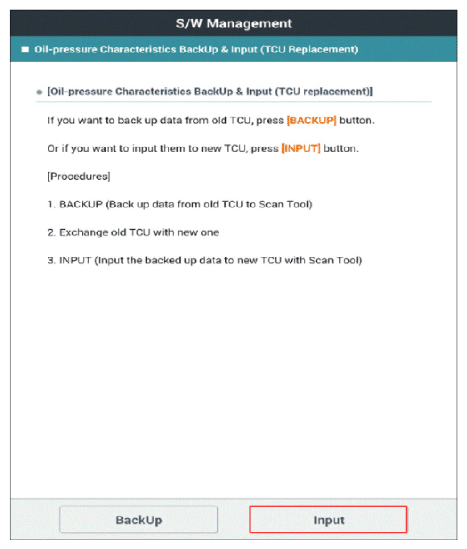

G15727826Courtesy of KIA MOTORS AMERICA, INC.

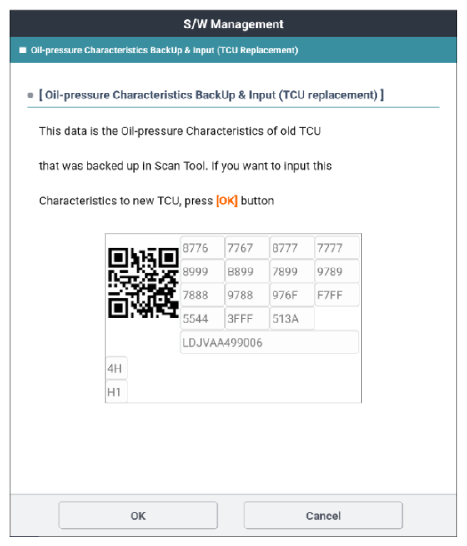

G15727827Courtesy of KIA MOTORS AMERICA, INC.

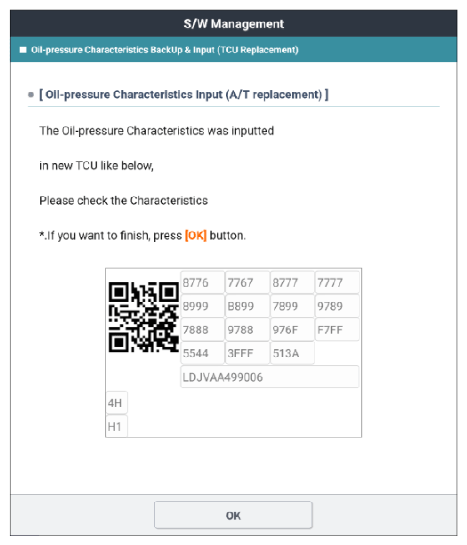

G15727828Courtesy of KIA MOTORS AMERICA, INC.
