DTC P0753-00: Shift Control Solenoid Valve 'A' Electrical (UD/C): General Description

The shift control solenoid valve (UD & C) is a variable hydraulic pressure control solenoid valve. In according to signals from the TCM, it routes the hydraulic pressure to control the UD clutch.

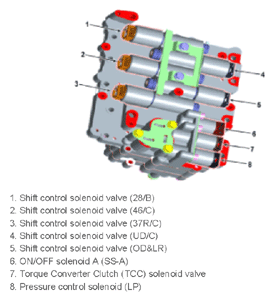

	Solenoid Valve								Remark
	VFS							ON/OFF
	Direct Control VFS					Indirect Control VFS		ON/OFF
	VFS-28/B	VFS-46/C	VFS-37R/C	VFS-UD/C	VFS-OD/C & LR/B	VFS-T/CON	VFS-LINE	SS-A
P				◦			◦	•	•: Connected ◦: Variable Connected
N			•	•			◦	•
R				•			◦	•
1						◦	◦	•
2	•				•	◦	◦
3			•		•	◦	◦
4		•			•	◦	◦
5						◦	◦
6		•		•		◦	◦
7			•	•		◦	◦
8	•			•		◦	◦

Courtesy of KIA MOTORS AMERICA, INC.
