Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Ignition "OFF".
  2. Connect KDS to "Data Link Connector (DLC)".
  3. Select the "Vehicle S/W Management" about related DTC with KDS.
  4. Perform "Oil-pressure Characteristics BackUp & Input (TCU Replacement)" and Go to "VERIFICATION OF REPAIR " procedure.
 Fig.1 to 9

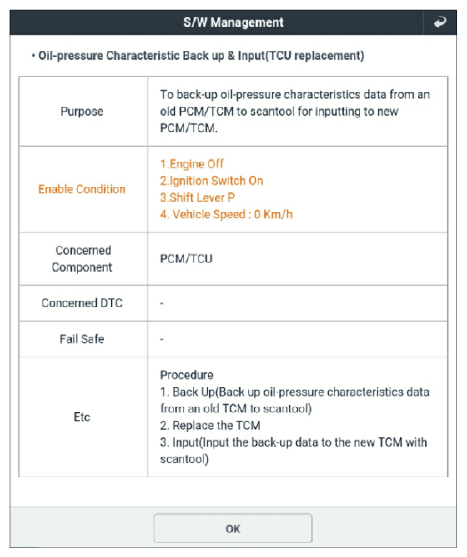

G15727803Courtesy of KIA MOTORS AMERICA, INC.

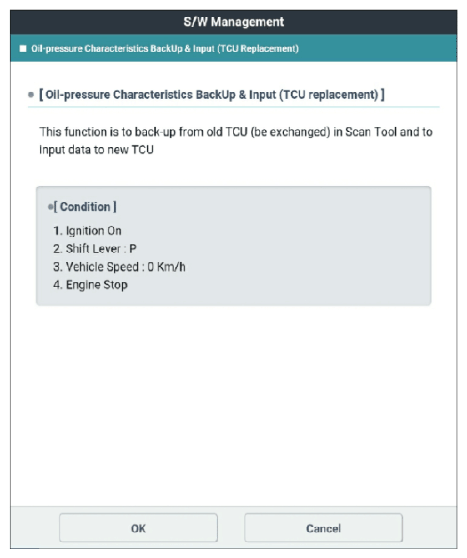

G15727804Courtesy of KIA MOTORS AMERICA, INC.

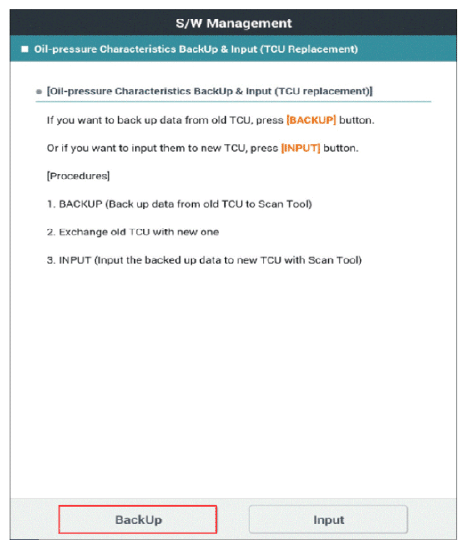

G15727805Courtesy of KIA MOTORS AMERICA, INC.

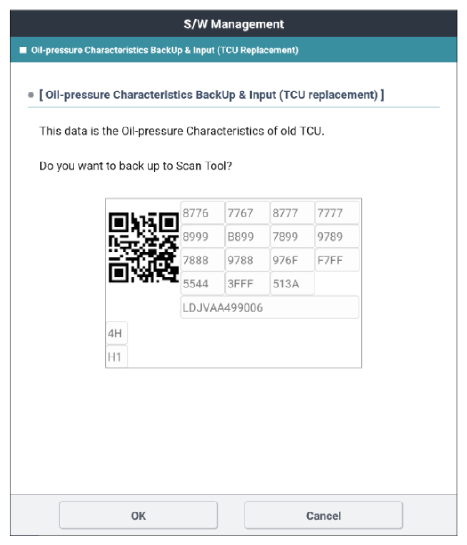

G15727806Courtesy of KIA MOTORS AMERICA, INC.

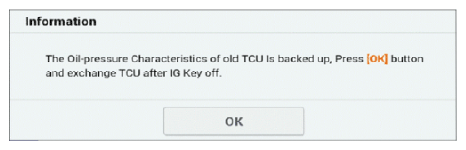

G15727807Courtesy of KIA MOTORS AMERICA, INC.

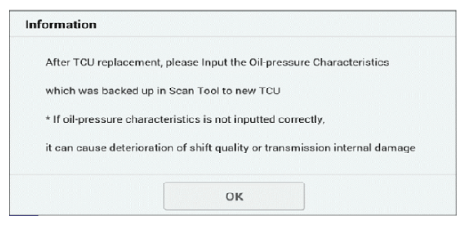

G15727808Courtesy of KIA MOTORS AMERICA, INC.

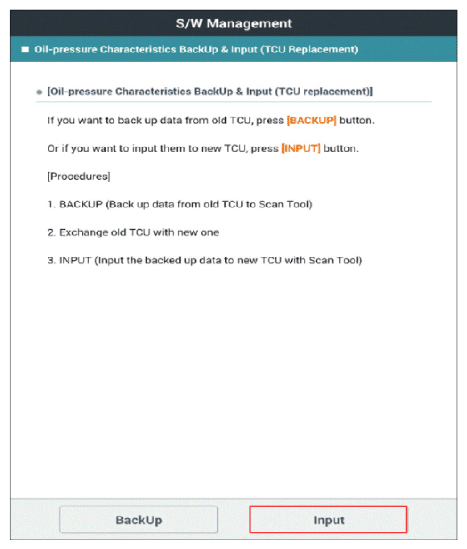

G15727809Courtesy of KIA MOTORS AMERICA, INC.

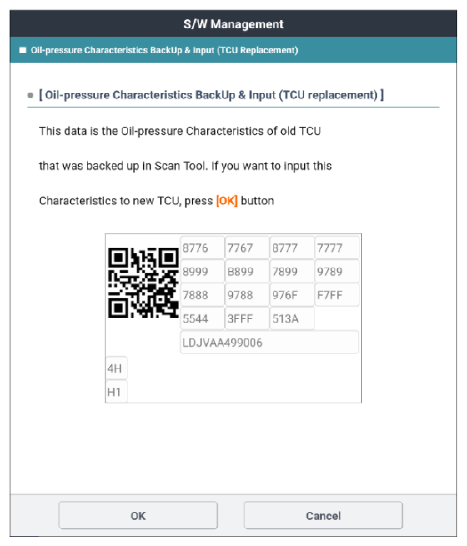

G15727810Courtesy of KIA MOTORS AMERICA, INC.

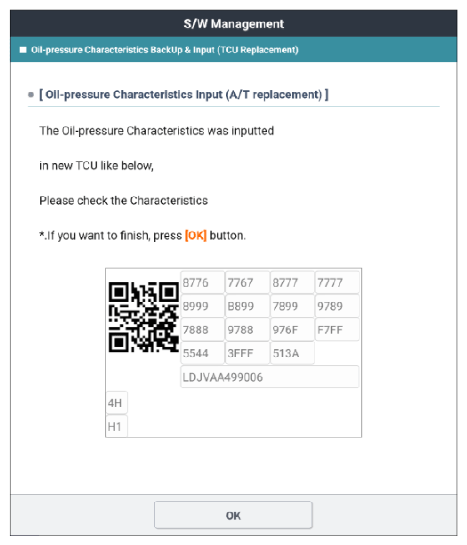

G15727811Courtesy of KIA MOTORS AMERICA, INC.
