DTC P0748-00: Pressure Control Solenoid Valve (VFS) 'A' Electrical: General Description

The pressure control solenoid valve is controlled by the current. To minimize the shift shock, the TCM controls the hydraulic pressure by varying the current.

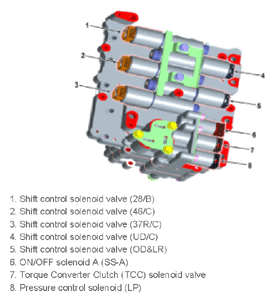

	Solenoid Valve								Remark
	VFS							ON/OFF
	Direct Control VFS					Indirect Control VFS		ON/OFF
	VFS-28/B	VFS-46/C	VFS-37R/C	VFS-UD/C	VFS-OD/C & LR/B	VFS-T/CON	VFS-LINE	SS-A
P				◦			◦	•	•: Connected ◦: Variable Connected
N			•	•			◦	•
R				•			◦	•
1						◦	◦	•
2	•				•	◦	◦
3			•		•	◦	◦
4		•			•	◦	◦
5						◦	◦
6		•		•		◦	◦
7			•	•		◦	◦
8	•			•		◦	◦
