Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Ignition "OFF".
  2. Connect KDS to "Data Link Connector (DLC)".
  3. Select the "Vehicle S/W Management" about related DTC with KDS.
  4. Perform "Oil-pressure Characteristics BackUp & Input (TCU Replacement)" and Go to "VERIFICATION OF REPAIR " procedure.
 Fig.1 to 9

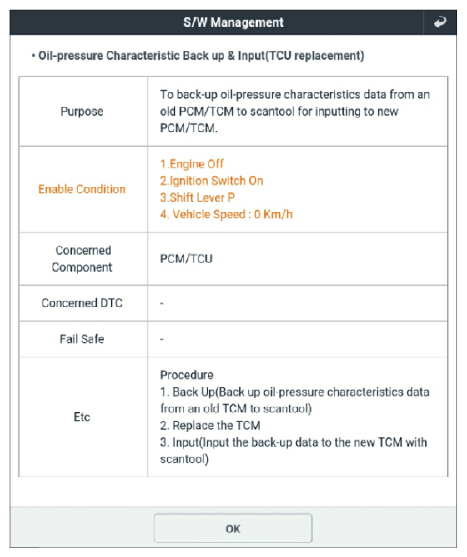

G15727786Courtesy of KIA MOTORS AMERICA, INC.

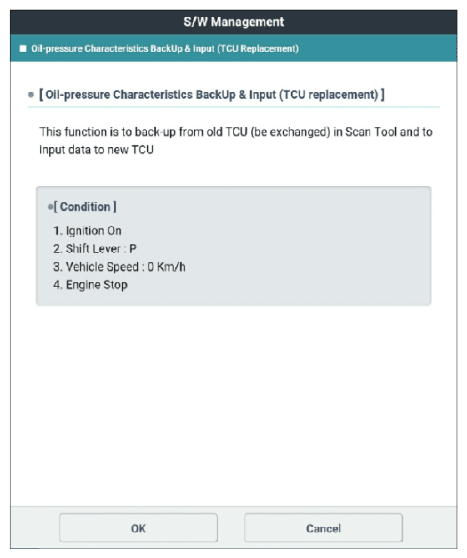

G15727787Courtesy of KIA MOTORS AMERICA, INC.

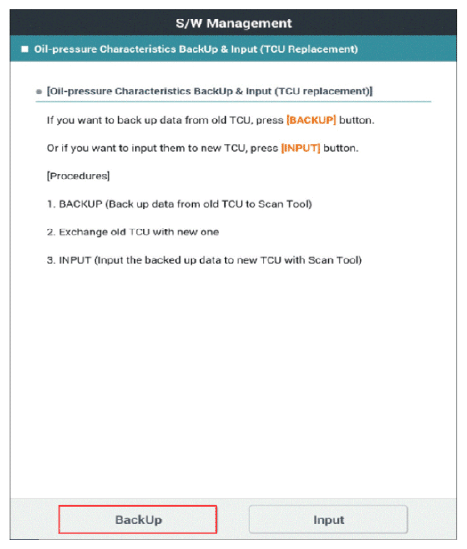

G15727788Courtesy of KIA MOTORS AMERICA, INC.

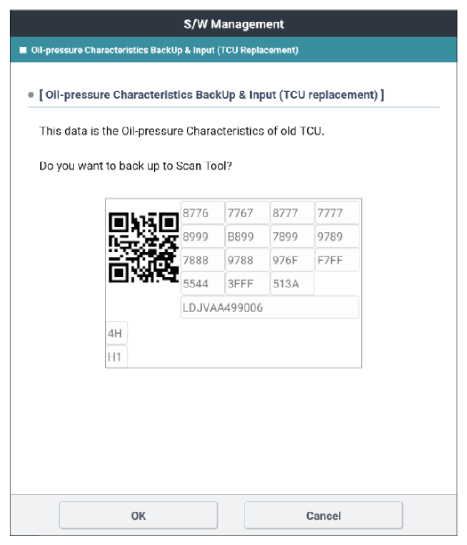

G15727789Courtesy of KIA MOTORS AMERICA, INC.

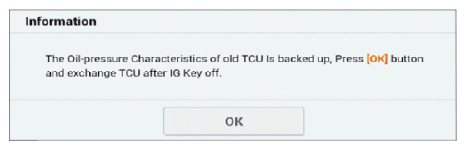

G15727790Courtesy of KIA MOTORS AMERICA, INC.

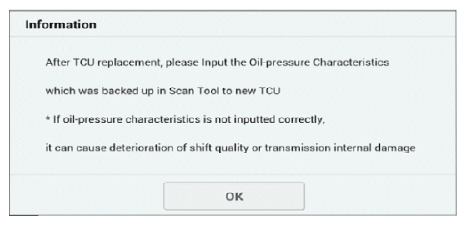

G15727791Courtesy of KIA MOTORS AMERICA, INC.

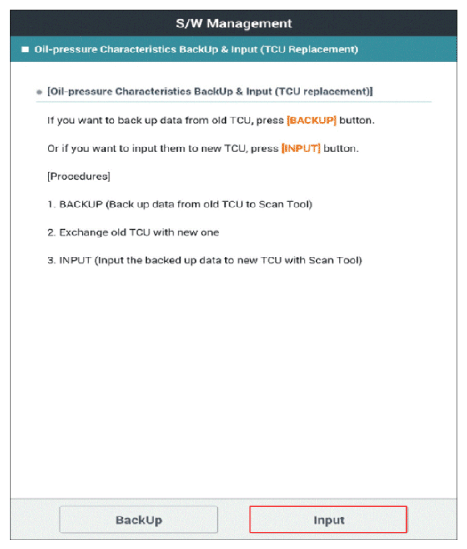

G15727792Courtesy of KIA MOTORS AMERICA, INC.

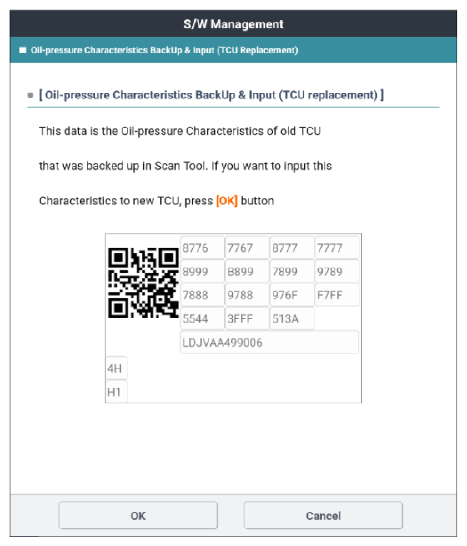

G15727793Courtesy of KIA MOTORS AMERICA, INC.

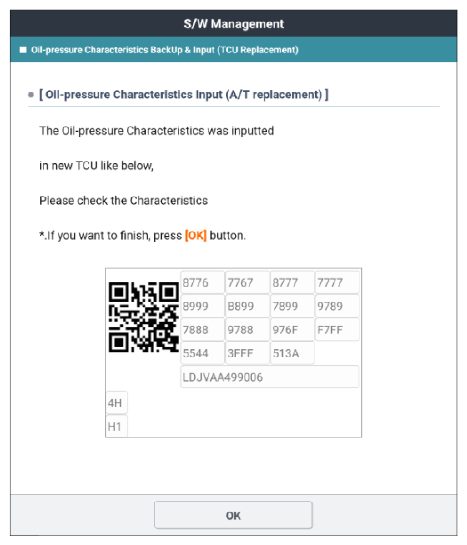

G15727794Courtesy of KIA MOTORS AMERICA, INC.
