Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Ignition "OFF".
  2. Connect KDS to "Data Link Connector (DLC)".
  3. Select the "Vehicle S/W Management" about related DTC with KDS.
  4. Perform "Oil-pressure Characteristics BackUp & Input (TCU Replacement)" and Go to "VERIFICATION OF REPAIR " procedure.
 Fig.1 to 9

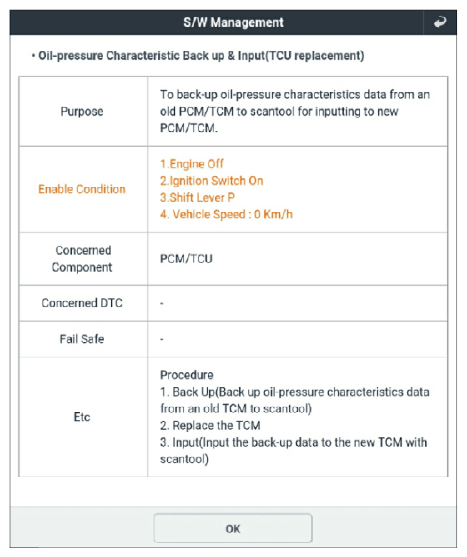

G15727770Courtesy of KIA MOTORS AMERICA, INC.

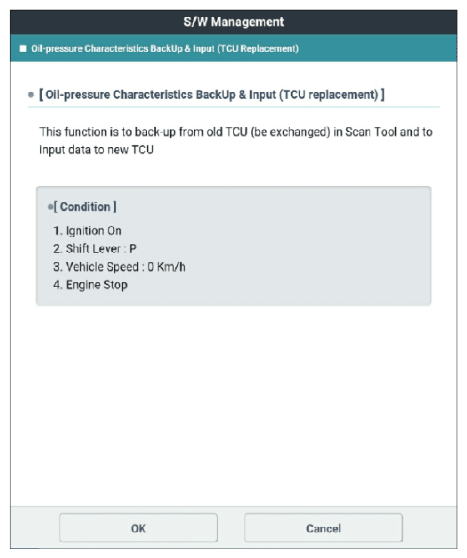

G15727771Courtesy of KIA MOTORS AMERICA, INC.

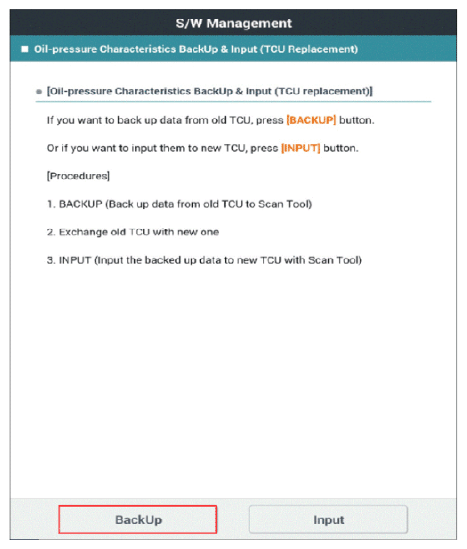

G15727772Courtesy of KIA MOTORS AMERICA, INC.

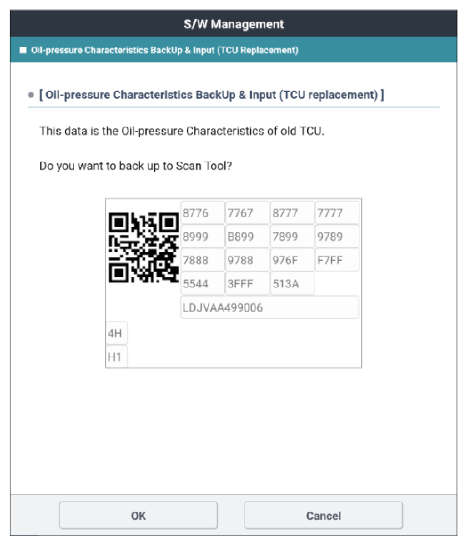

G15727773Courtesy of KIA MOTORS AMERICA, INC.

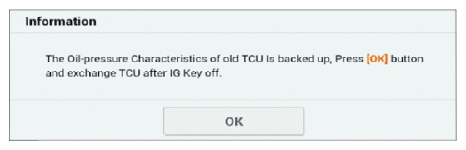

G15727774Courtesy of KIA MOTORS AMERICA, INC.

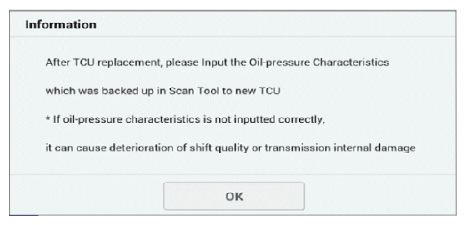

G15727775Courtesy of KIA MOTORS AMERICA, INC.

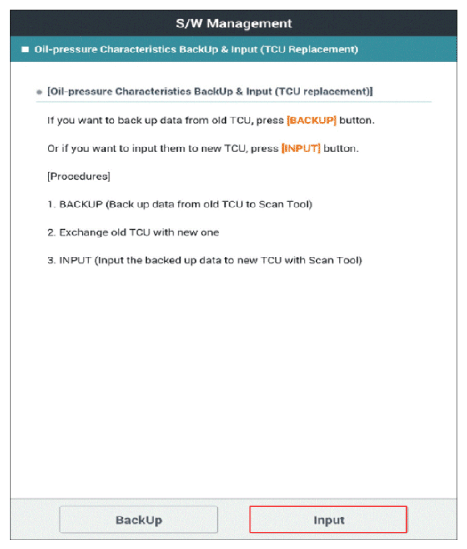

G15727776Courtesy of KIA MOTORS AMERICA, INC.

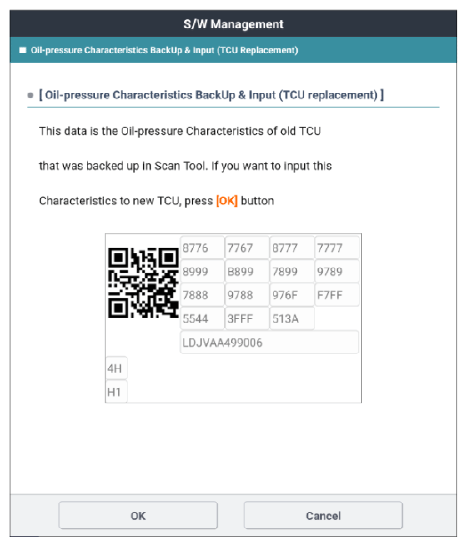

G15727777Courtesy of KIA MOTORS AMERICA, INC.

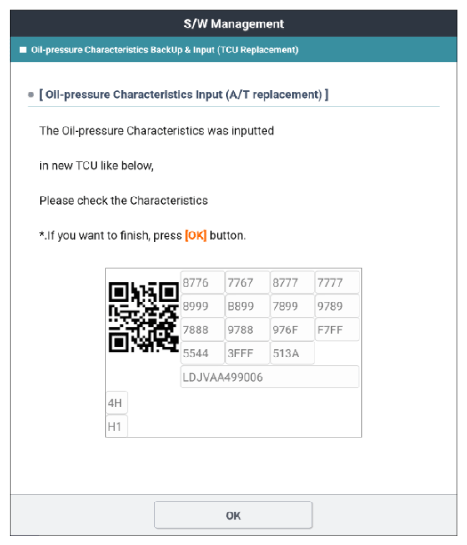

G15727778Courtesy of KIA MOTORS AMERICA, INC.
