Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Ignition "OFF".
  2. Connect KDS to "Data Link Connector (DLC)".
  3. Select the "Vehicle S/W Management" about related DTC with KDS.
  4. Perform "Oil-pressure Characteristics BackUp & Input (TCU Replacement)" and Go to "VERIFICATION OF REPAIR " procedure.
 Fig.1 to 9

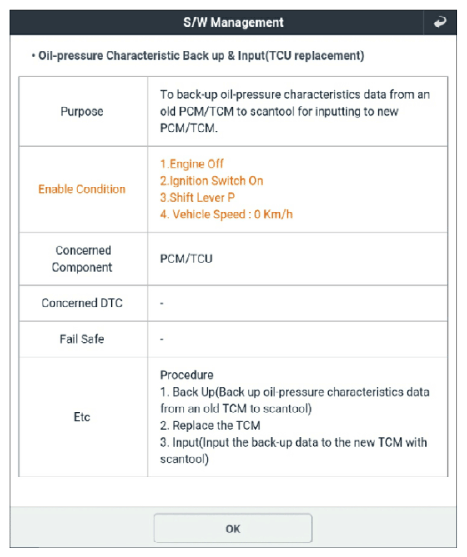

G15727753Courtesy of KIA MOTORS AMERICA, INC.

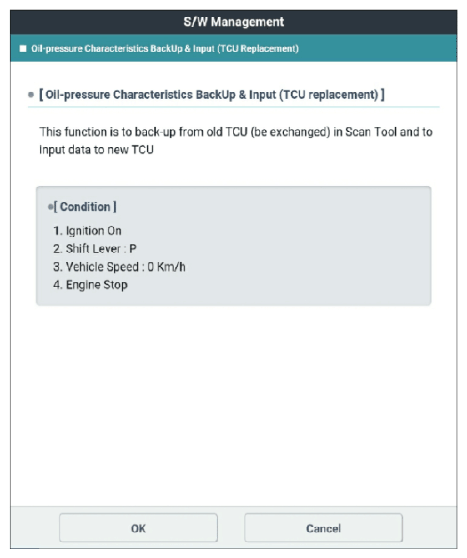

G15727754Courtesy of KIA MOTORS AMERICA, INC.

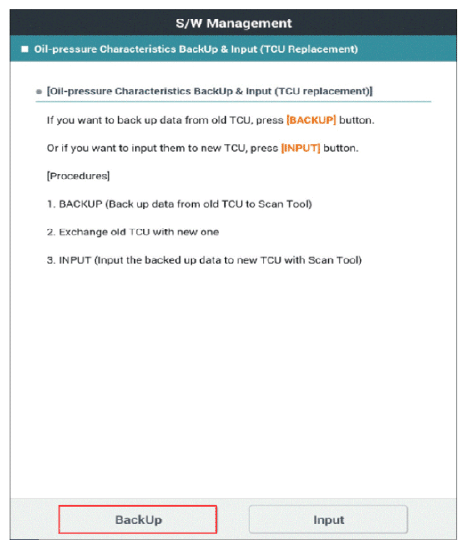

G15727755Courtesy of KIA MOTORS AMERICA, INC.

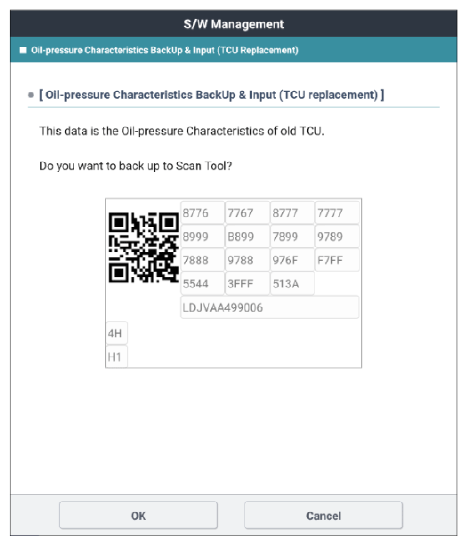

G15727756Courtesy of KIA MOTORS AMERICA, INC.

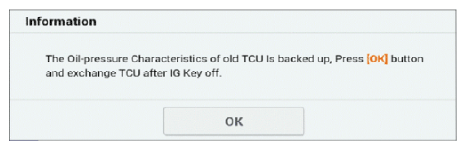

G15727757Courtesy of KIA MOTORS AMERICA, INC.

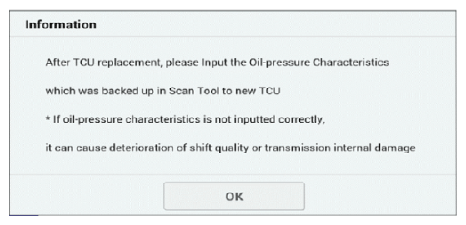

G15727758Courtesy of KIA MOTORS AMERICA, INC.

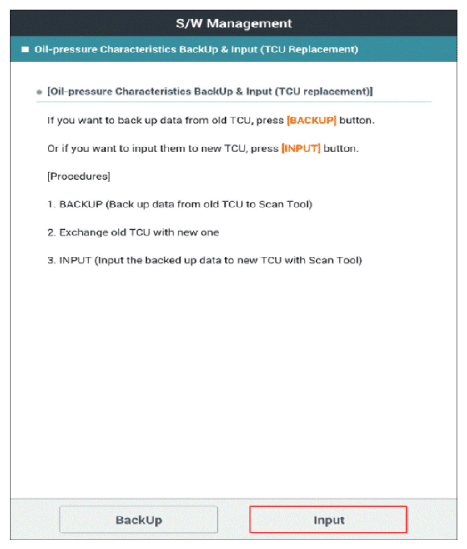

G15727759Courtesy of KIA MOTORS AMERICA, INC.

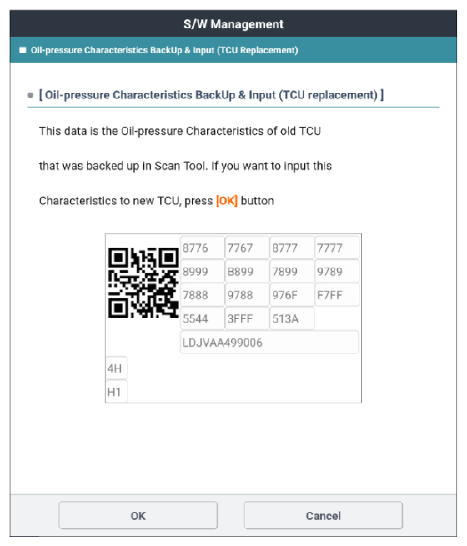

G15727760Courtesy of KIA MOTORS AMERICA, INC.

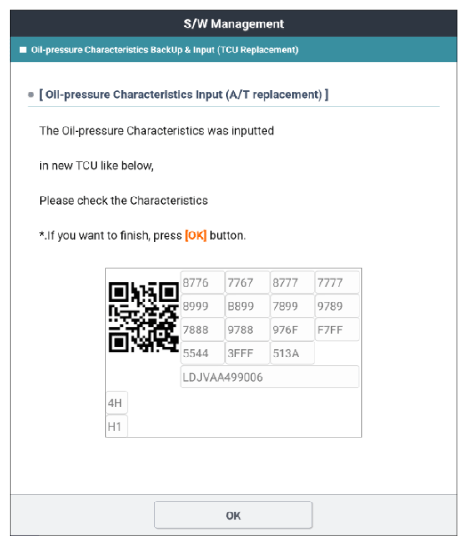

G15727761Courtesy of KIA MOTORS AMERICA, INC.
