Component Inspection: Notes

Inspection Condition	Inspection Procedure	Reference

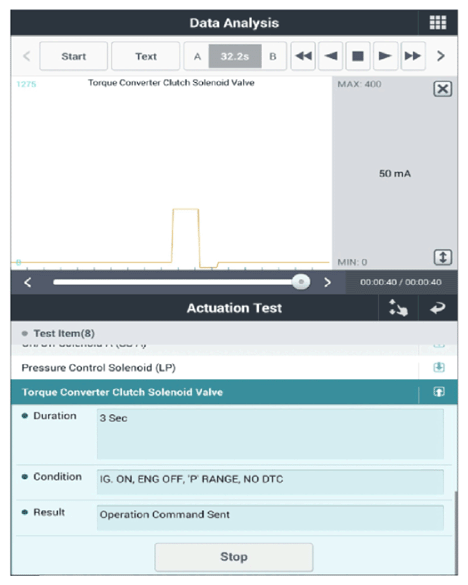

Ignition "ON". NO DTC Shift lever "P"	Ignition "OFF" Connect KDS to "Data Link Connector (DLC)". Ignition "ON" Perform "Torque Converter Clutch Solenoid Valve" in "Actuation Test" with KDS. Monitor "Torque Converter Clutch Solenoid Valve" in "Current Data" with KDS.	Fig.1

G15727752

Courtesy of KIA MOTORS AMERICA, INC.

Good

Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
Repair or replace as necessary and then Go to "VERIFICATION OF REPAIR " procedure.

No Good

Go to "TORQUE CONVERTER CLUTCH SOLENOID VALVE RESISTANCE INSPECTION " procedure.
