Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Ignition "OFF".
  2. Connect KDS to "Data Link Connector (DLC)".
  3. Select the "Vehicle S/W Management" about related DTC with KDS.
  4. Perform "Oil-pressure Characteristics Input (A/T Replacement)" and Go to "VERIFICATION OF REPAIR " procedure.
 Fig.1 to 4

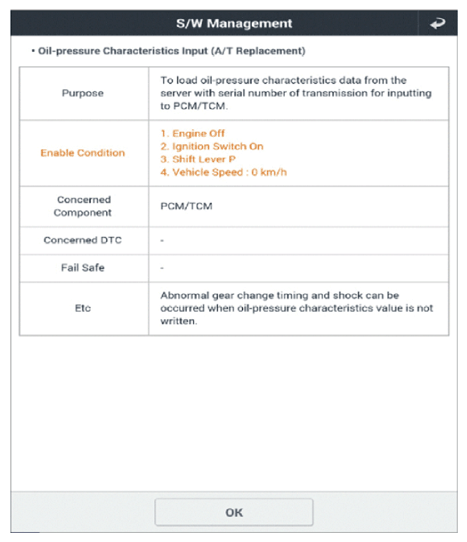

G15727694Courtesy of KIA MOTORS AMERICA, INC.

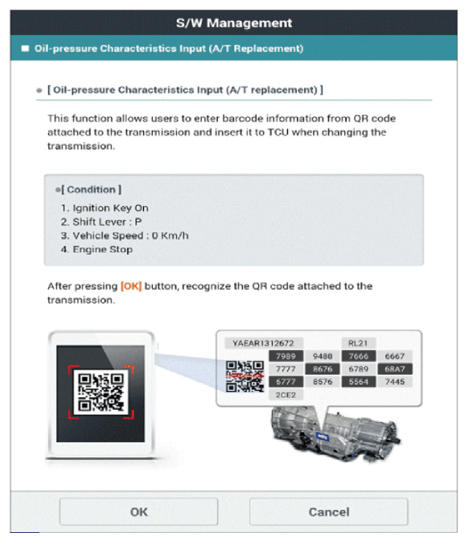

G15727695Courtesy of KIA MOTORS AMERICA, INC.

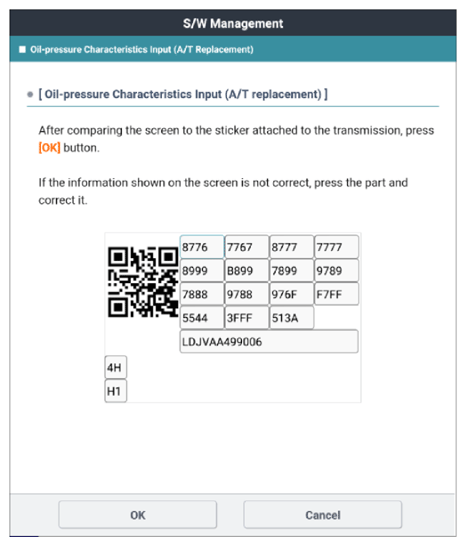

G15727696Courtesy of KIA MOTORS AMERICA, INC.

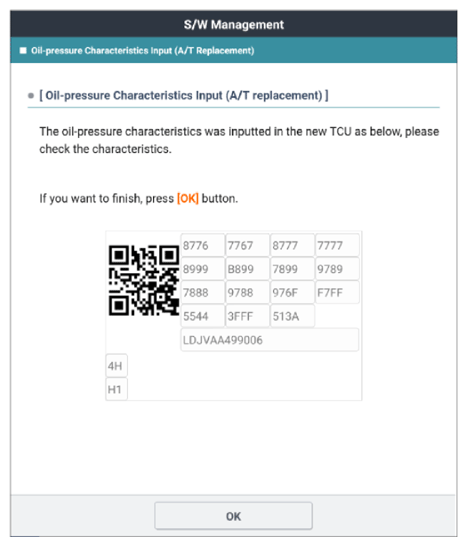

G15727697Courtesy of KIA MOTORS AMERICA, INC.
