Circuit Inspection

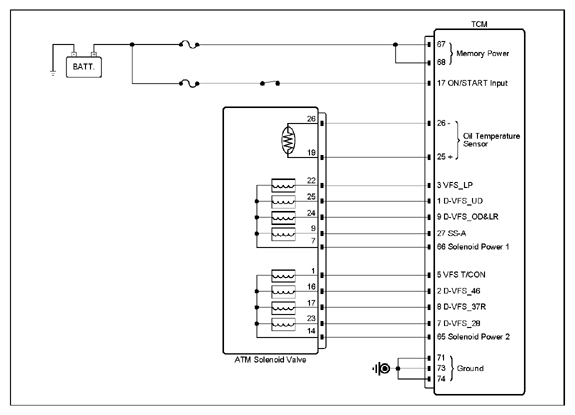

G15727655Courtesy of KIA MOTORS AMERICA, INC.

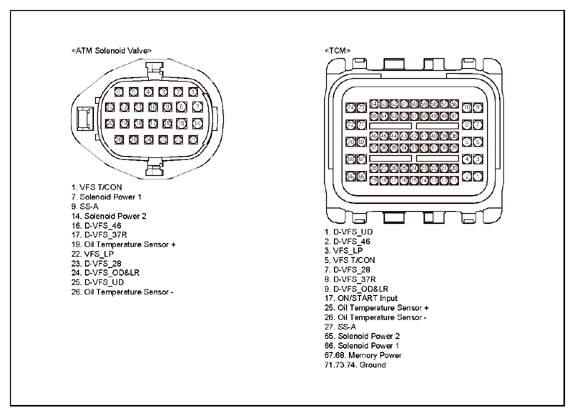

G15727656Courtesy of KIA MOTORS AMERICA, INC.
Inspection Condition (+) Probe (-) Probe Specification
Connector Terminal Connector Terminal
  1. Disconnect the electrical connector(s) from the concerned component.
  2. Ignition "ON".
 ATM solenoid valve connector 19 (sensor +) Chassis ground - Approx. 5V
  1. Ignition "OFF".
  2. Disconnect the electrical connector(s) from the concerned component.
 ATM solenoid valve connector 26 (sensor -) Chassis ground - Approx. below 1Ω

Good

No Good
