Component Inspection

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Engine "ON". Gear lever position at "P".	Transmission range switch connector	6 (ground)	Transmission range switch connector	5 (power)	Fig.1
Engine "ON". Gear lever position at "P".	Transmission range switch connector	7 (S1)	Transmission range switch connector	8 (S2)	Fig.1
Engine "ON". Gear lever position at "R".	Transmission range switch connector	6 (ground)	Transmission range switch connector	5 (power)	Fig.2
Engine "ON". Gear lever position at "R".	Transmission range switch connector	7 (S1)	Transmission range switch connector	8 (S2)	Fig.2
Engine "ON". Gear lever position at "N".	Transmission range switch connector	6 (ground)	Transmission range switch connector	5 (power)	Fig.3
Engine "ON". Gear lever position at "N".	Transmission range switch connector	7 (S1)	Transmission range switch connector	8 (S2)	Fig.3
Engine "ON". Gear lever position at "D".	Transmission range switch connector	6 (ground)	Transmission range switch connector	5 (power)	Fig.4
Engine "ON". Gear lever position at "D".	Transmission range switch connector	7 (S1)	Transmission range switch connector	8 (S2)	Fig.4

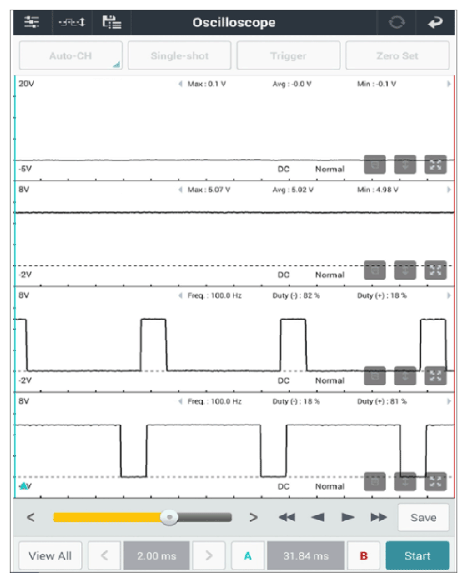

G15727604

Courtesy of KIA MOTORS AMERICA, INC.

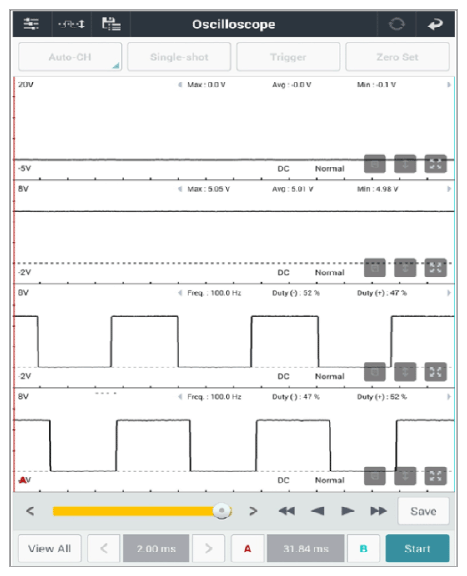

G15727605

Courtesy of KIA MOTORS AMERICA, INC.

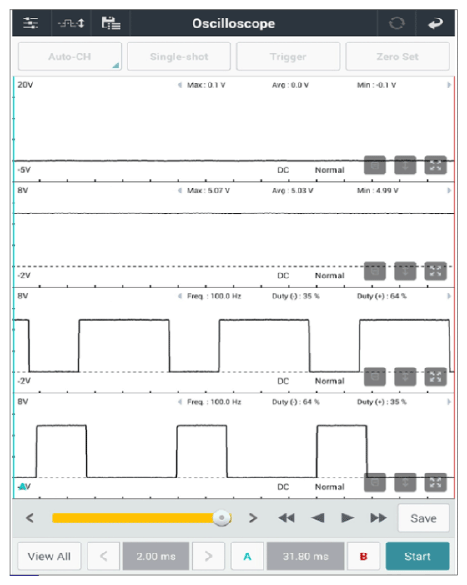

G15727606

Courtesy of KIA MOTORS AMERICA, INC.

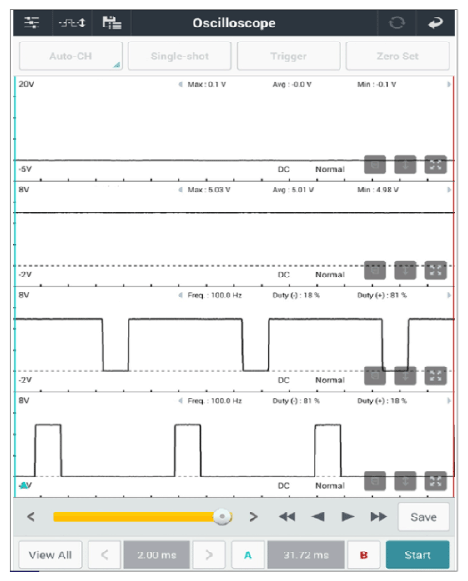

G15727607

Courtesy of KIA MOTORS AMERICA, INC.

Good

Carefully re-do this troubleshooting guide steps.
Check the alignment of shift cable. If problem occurs, align the cable and then Go to "VERIFICATION OF REPAIR " procedure.
If problem still occurs, replace TCM and then Go to "VERIFICATION OF REPAIR " procedure.

No Good

Carefully re-do this troubleshooting guide steps.
If problem still occurs, replace inhibitor switch and then Go to "VERIFICATION OF REPAIR " procedure.
