Removal & Installation: Removal

Remove the engine room under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")
Drain the coolant.
(Refer to Engine Mechanical System - "COOLANT ")
Remove the battery.
(Refer to Body Electrical System - "BATTERY ")
Remove the air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ")
Remove the battery tray.
(Refer to Body Electrical System - "BATTERY ")

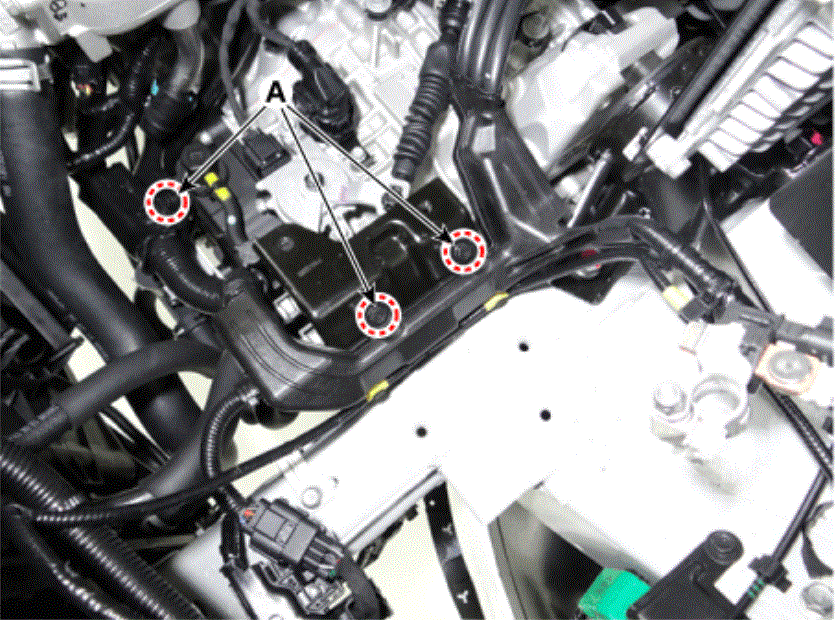

Remove the wiring bracket bolts (A).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

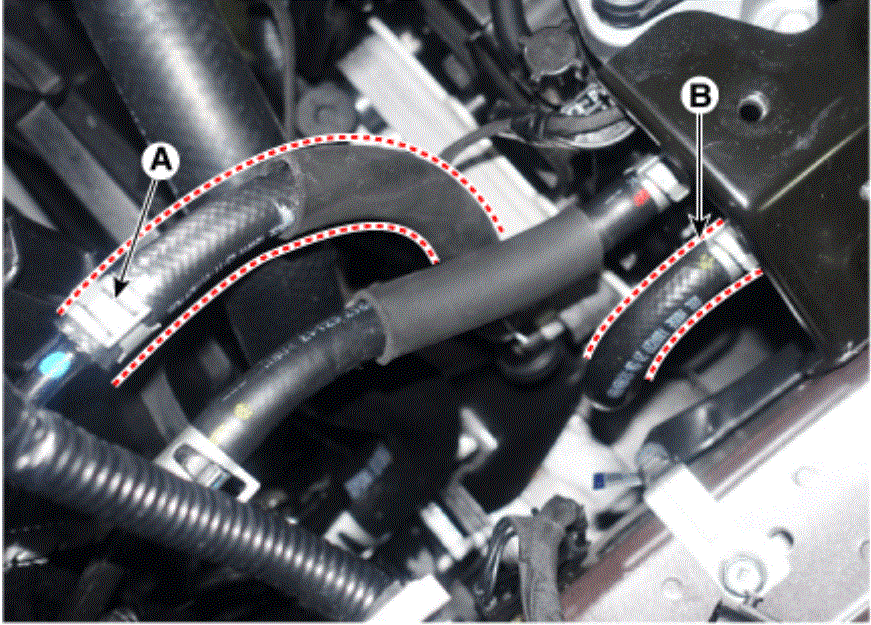

Separate the ATF cooler hose (A, B).

Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- Be careful not to cause any damage on the hose when tightening the clamp.
- Mount the clamp tightening part in the designated direction so that interference does not occur with the adjacent parts.
- After connecting the hose, check for oil leakage on the connecting part while the engine is on.

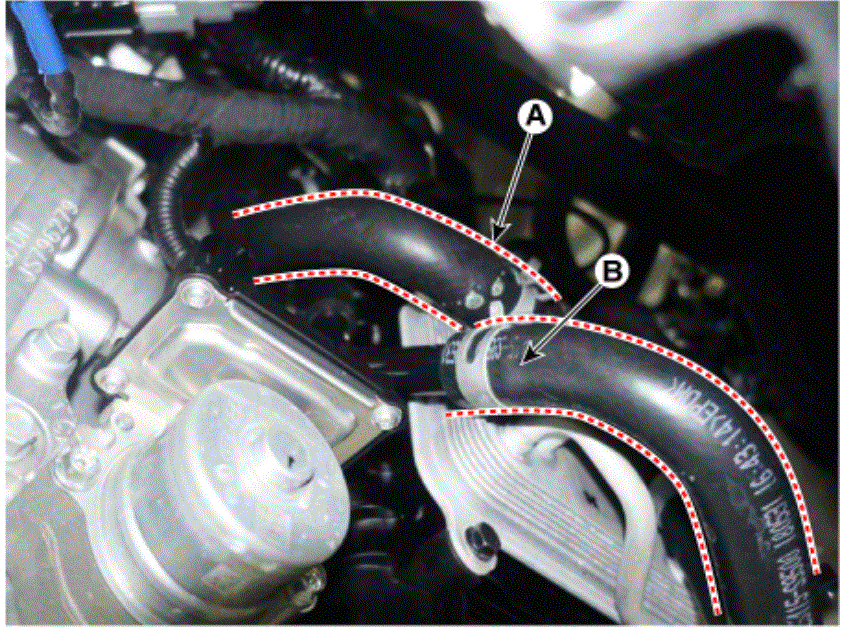

Separate the coolant hose (A, B).

Courtesy of KIA MOTORS AMERICA, INC.

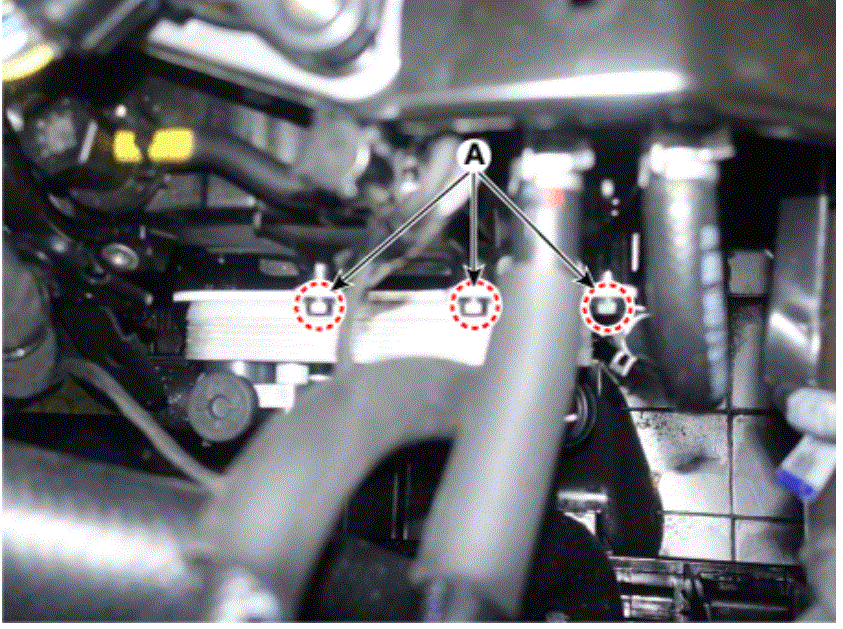

Remove the ATF warmer upper bolts (A).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

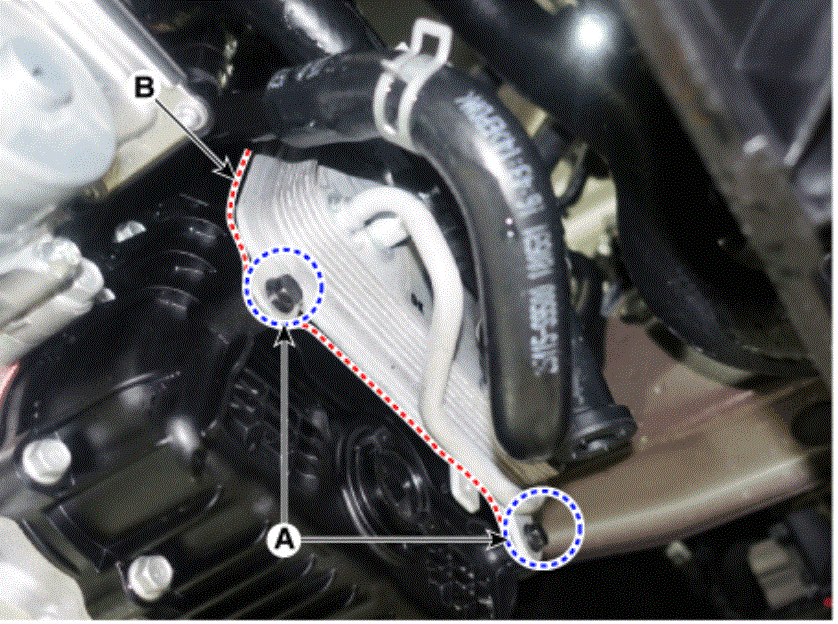

Remove the ATF warmer (B) after removing the bolts (A).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
