Monitor KDS Data

Inspection Condition	Inspection Procedure	Reference
Ignition "ON". TPMS sensor wake-up.	Connect KDS to "Data Link Connector (DLC)". Monitor parameters in "Current Data" with KDS.	Fig.1 to 4

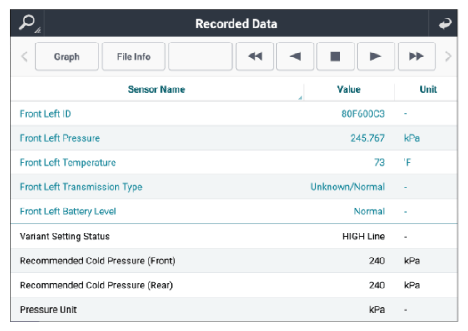

G15724084

Courtesy of KIA MOTORS AMERICA, INC.

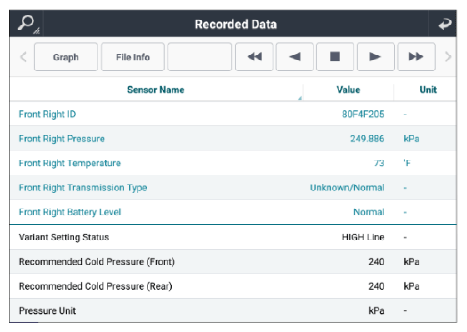

G15724085

Courtesy of KIA MOTORS AMERICA, INC.

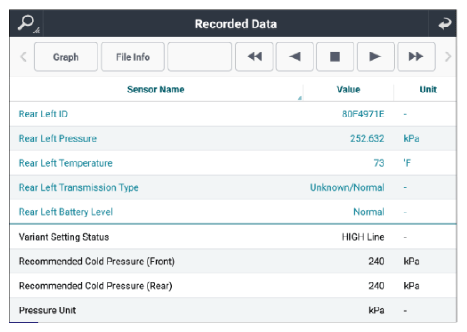

G15724086

Courtesy of KIA MOTORS AMERICA, INC.

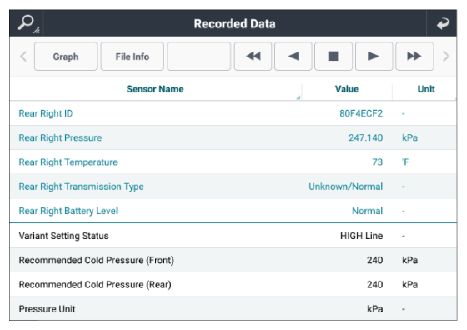

G15724087

Courtesy of KIA MOTORS AMERICA, INC.

Good

Fault is intermittent caused by poor contact in TPMS's connector or was repaired and IBU memory was not cleared.
Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
Repair or replace as necessary, Go to "VERIFICATION OF REPAIR " procedure.

No Good

Besides C166300, check the internal/external factors which could interfere with DTC, sensor status, and RF signal in the vehicle.
Go to "SYSTEM INSPECTION " procedure.
Perform "Register Sensor" in "Vehicle S/W Management" with KDS. TPMS or drive vehicle with over 21.8MPH (35 km/h) to complete "Auto-Learning" and "Auto-Location", after TPMS sensor is replaced.
