Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 12
G15724070Courtesy of KIA MOTORS AMERICA, INC.

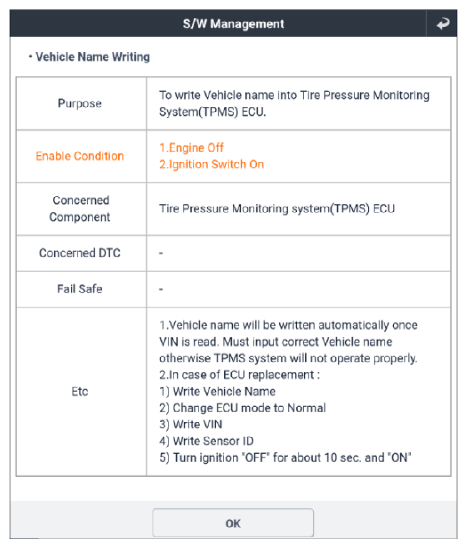

G15724071Courtesy of KIA MOTORS AMERICA, INC.

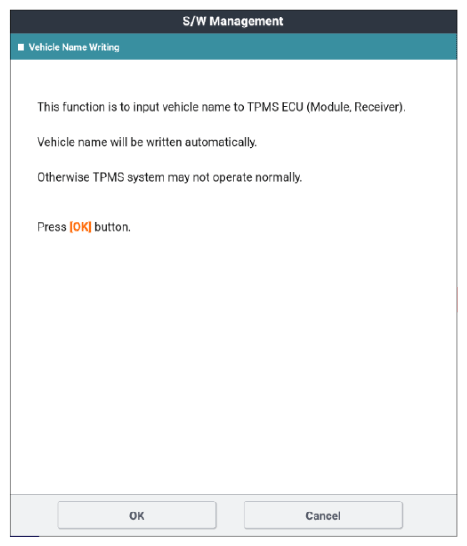

G15724072Courtesy of KIA MOTORS AMERICA, INC.

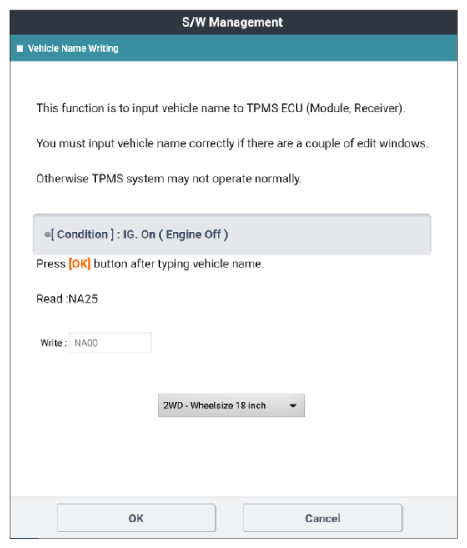

G15724073Courtesy of KIA MOTORS AMERICA, INC.
G15724074Courtesy of KIA MOTORS AMERICA, INC.

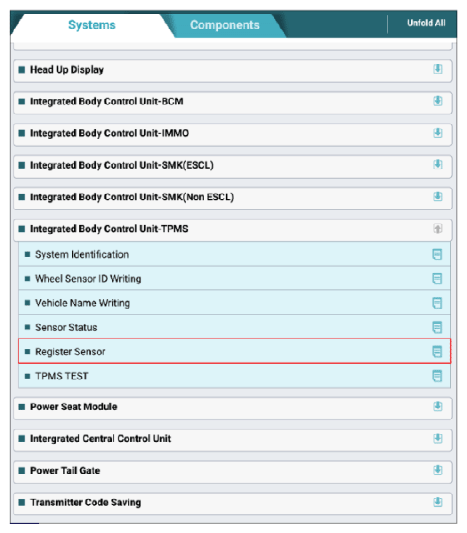

G15724075Courtesy of KIA MOTORS AMERICA, INC.

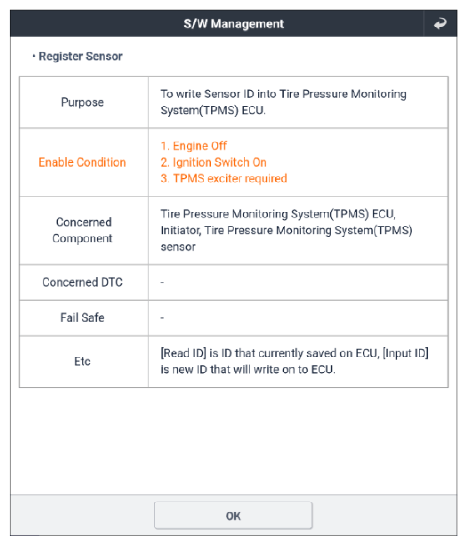

G15724076Courtesy of KIA MOTORS AMERICA, INC.

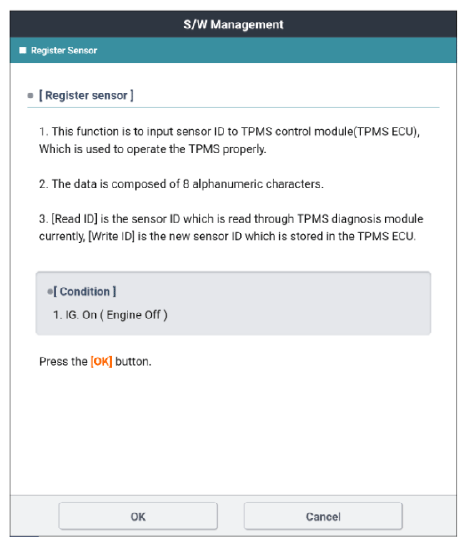

G15724077Courtesy of KIA MOTORS AMERICA, INC.

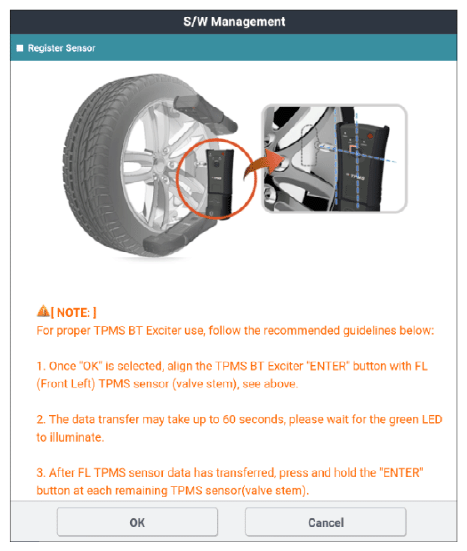

G15724078Courtesy of KIA MOTORS AMERICA, INC.

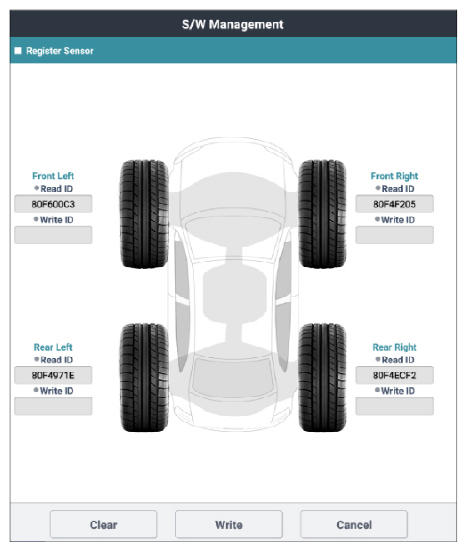

G15724079Courtesy of KIA MOTORS AMERICA, INC.
G15724080Courtesy of KIA MOTORS AMERICA, INC.

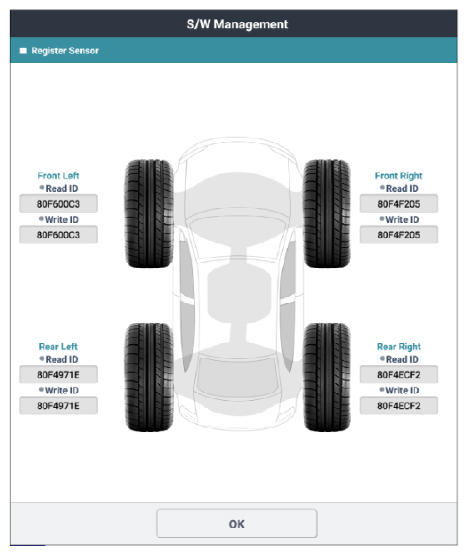

G15724081Courtesy of KIA MOTORS AMERICA, INC.
