Monitor DTC Status
| Inspection Condition | Inspection Procedure | Reference |
|---|---|---|
|
Monitor "Diagnostic Trouble Codes (DTC)" with KDS. |

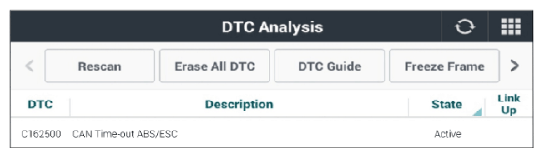

Fig.1 |
Active Fault
- Check DTCs related with CAN or signal of vehicle speed in the other system, such as HECU system. If there are the DTCs, repair them and then confirm deletion.
- Recheck TPMS system, if C162500 is still active DTC, go to "MONITOR KDS DATA " procedure.
History/Pending Fault
- Go to "VERIFICATION OF REPAIR " procedure.
