Monitor KDS Data
| Inspection Condition | Inspection Procedure | Reference |
|---|---|---|
|
|

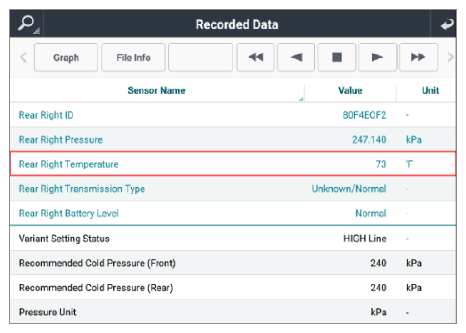

Fig.1 |
Good
- Fault is intermittent caused by poor contact in TPMS's connector or was repaired and IBU memory was not cleared.
- Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
- Repair or replace as necessary, go to "SYSTEM INSPECTION " procedure.
No Good
- Repair or replace as necessary, go to "SYSTEM INSPECTION " procedure.
