Removal & Installation: Removal

Remove the front wheel and tire.
(Refer to Tires/Wheels - "WHEEL ")

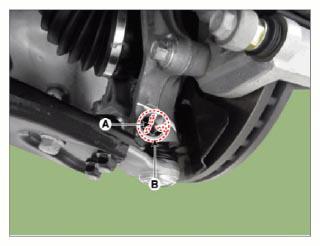

Remove the split pin (A).
Remove the lower arm ball joint mounting bolt and nut (B).
Tightening torque:

98.1 - 117.7 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

Remove the front lower arm from the front knuckle using the SST (0K545-A9100).

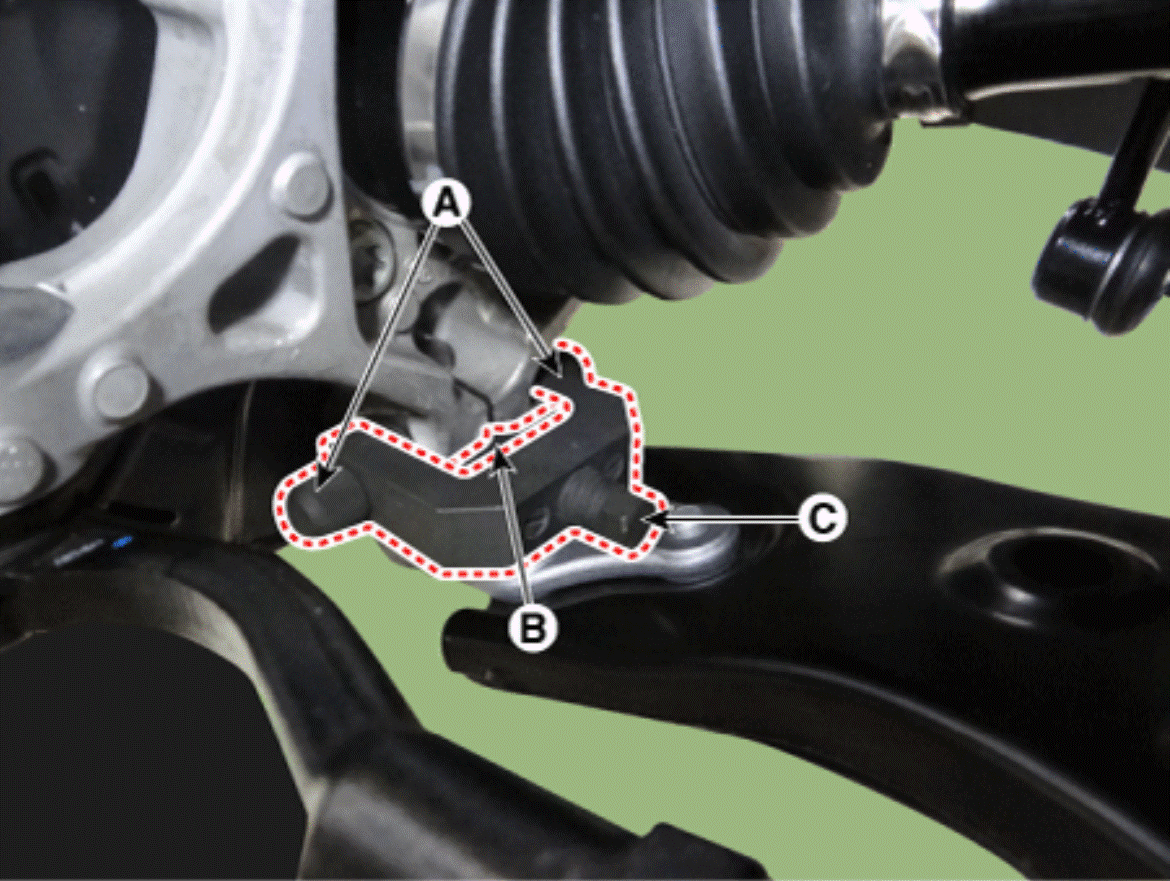

After removing bolts from the front knuckle, install and tighten the sub body bolt (A).
Insert the sub body (B) between the front knuckle and the sub body bolt.

Tighten the bolt (C) sub body to broaden the gap of the front knuckle.

Courtesy of KIA MOTORS AMERICA, INC.

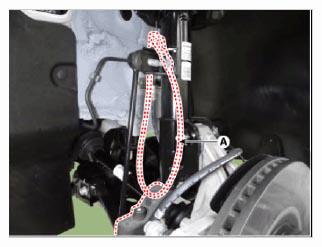

Install the safe wire (A).

Courtesy of KIA MOTORS AMERICA, INC.

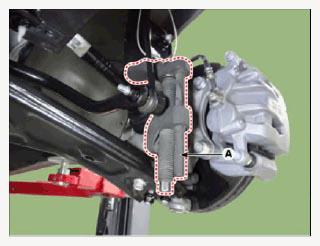

Install the main body (A) between the front strut and the lower arm.

Courtesy of KIA MOTORS AMERICA, INC.

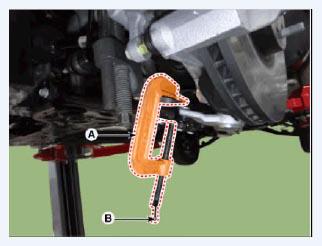

To avoid the main body coming off, install a fixing clamp (A) beside the main body and then rotate the handle (B) clockwise until the clamp is fixed on the lower arm.

Courtesy of KIA MOTORS AMERICA, INC.

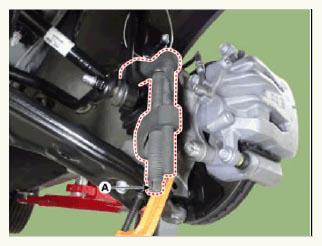

Tighten the main body bolt (A) slowly and remove the lower arm from the front knuckle.

Courtesy of KIA MOTORS AMERICA, INC.

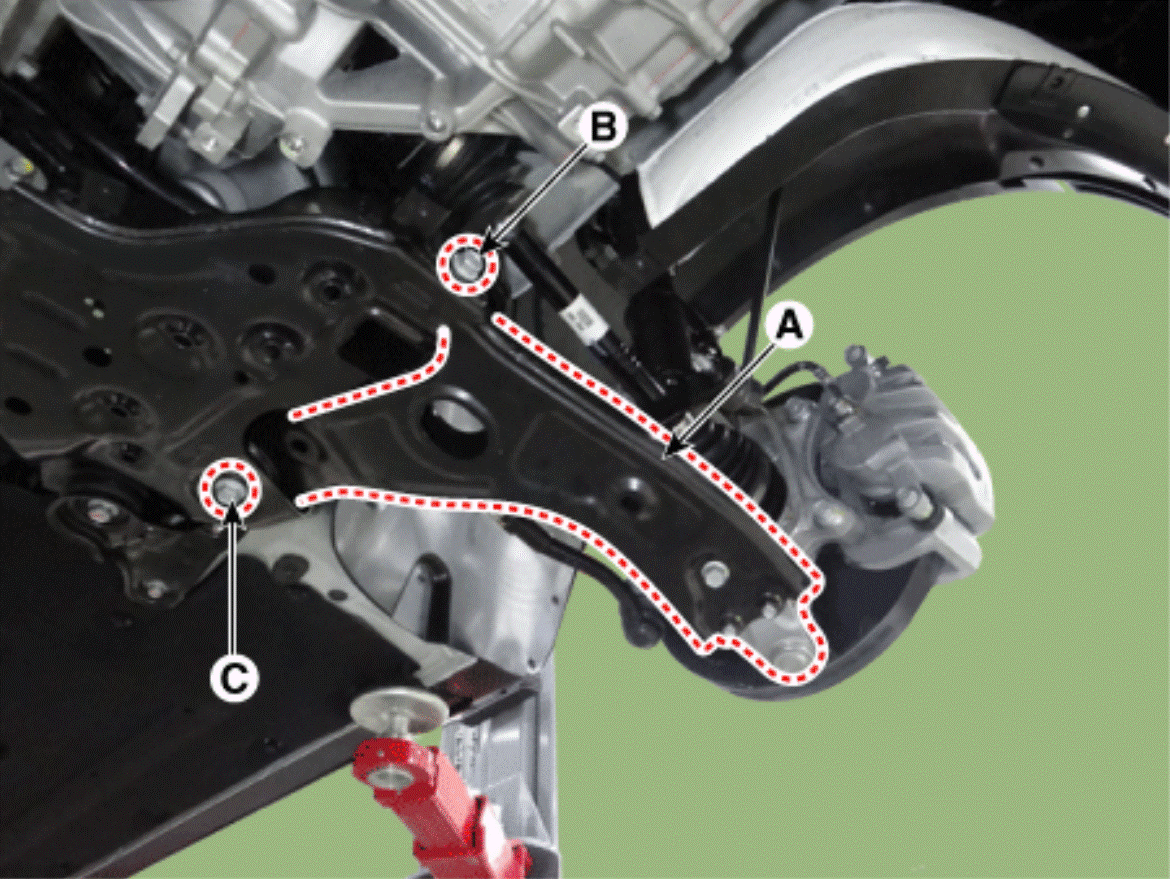

Remove the lower arm (A) from the sub frame.
Tightening torque:

B: 117.7 - 137.3 N.m (12.0 - 14.0 kgf.m, 86.8 - 101.3 lb.ft)

C: 157.0 - 176.6 N.m (16.0 - 18.0 kgf.m, 115.7 - 130.2 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
