Home >> Kia >> 2024 >> Telluride SX X-Line >> Repair and Diagnosis >> Steering >> Electronic Steering >> Motor Driven Power Steering System Diagnosis >> DTC C2413-96: Motor Current Fail (Current Over) >> Wiring Inspection >> Circuit Inspection >> Notes

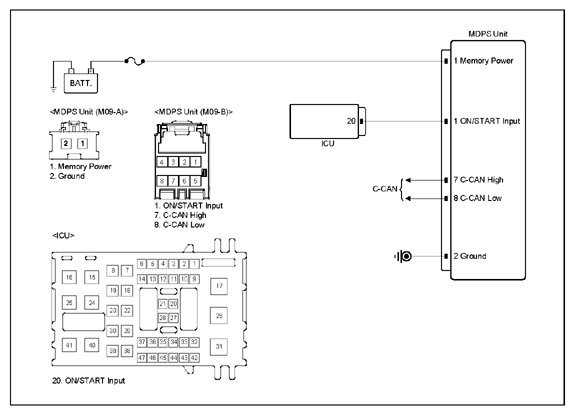

Circuit Inspection: Notes

G15727559Courtesy of KIA MOTORS AMERICA, INC.
