Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "EPS Type Recognition" in "Vehicle S/W management" with KDS.
 Fig.1 to 4

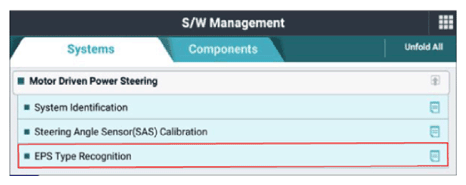

G15727560Courtesy of KIA MOTORS AMERICA, INC.

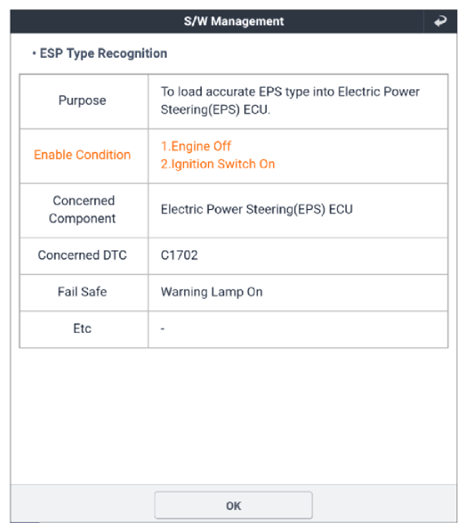

G15727561Courtesy of KIA MOTORS AMERICA, INC.

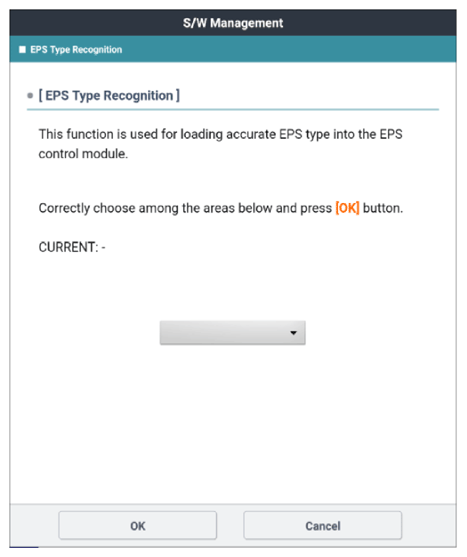

G15727562Courtesy of KIA MOTORS AMERICA, INC.
G15727563Courtesy of KIA MOTORS AMERICA, INC.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Steering Angle Sensor (SAS) Calibration" in "Vehicle S/W management" with KDS.
 Fig.1 to 4
G15727564Courtesy of KIA MOTORS AMERICA, INC.

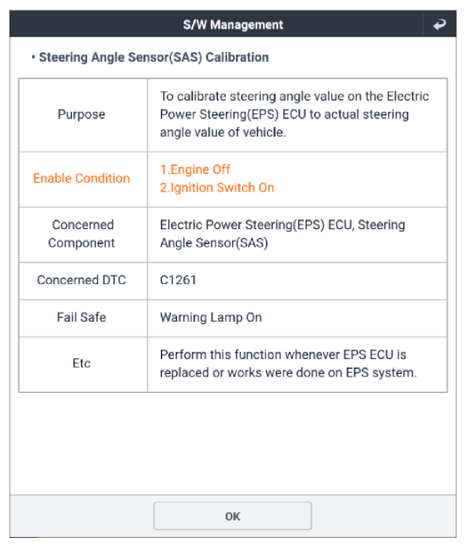

G15727565Courtesy of KIA MOTORS AMERICA, INC.

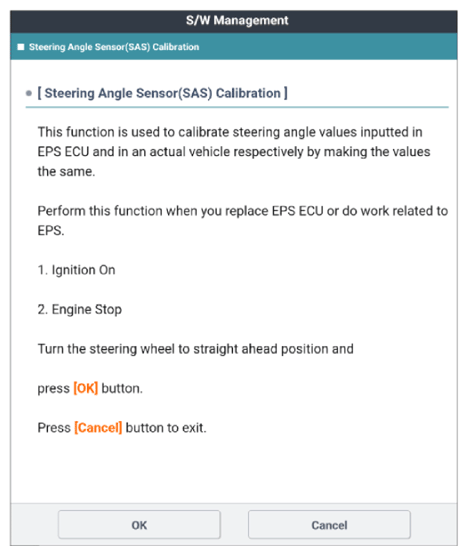

G15727566Courtesy of KIA MOTORS AMERICA, INC.
G15727567Courtesy of KIA MOTORS AMERICA, INC.
