Home >> Kia >> 2024 >> Telluride SX X-Line >> Repair and Diagnosis >> Steering >> Electronic Steering >> Motor Driven Power Steering System Diagnosis >> DTC C1817-83: CAN Signal Error Gateway >> Wiring Inspection >> Circuit Inspection >> Notes

Circuit Inspection: Notes

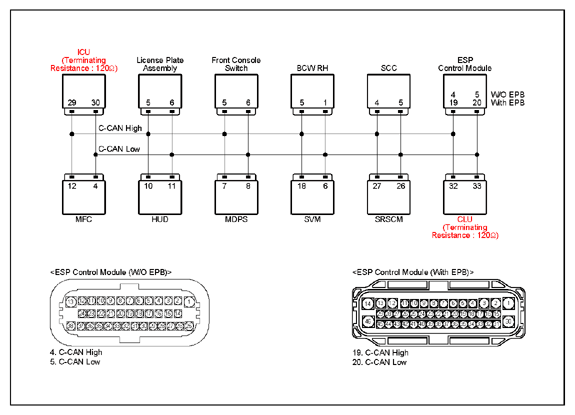

G15727542Courtesy of KIA MOTORS AMERICA, INC.

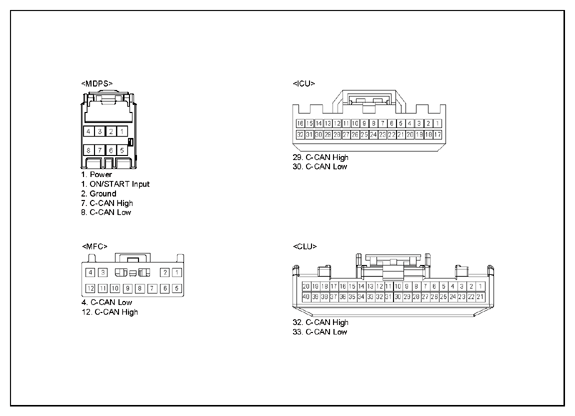

G15727543Courtesy of KIA MOTORS AMERICA, INC.
