Home >> Kia >> 2024 >> Telluride SX X-Line >> Repair and Diagnosis >> Steering >> Electronic Steering >> Motor Driven Power Steering System Diagnosis >> DTC C1704-01: ECU Fail-Safe Relay Fail >> Wiring Inspection >> Circuit Inspection >> Notes

Circuit Inspection: Notes

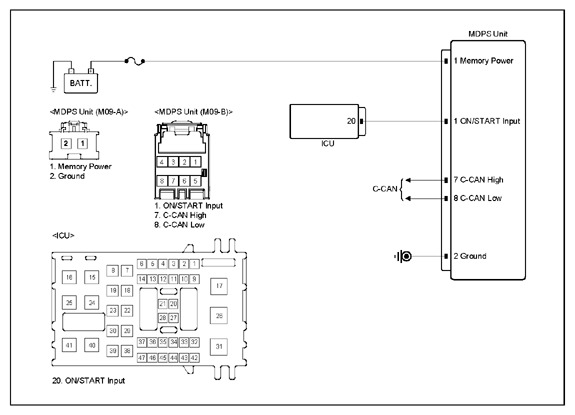

G15727514Courtesy of KIA MOTORS AMERICA, INC.
