Circuit Inspection: Notes

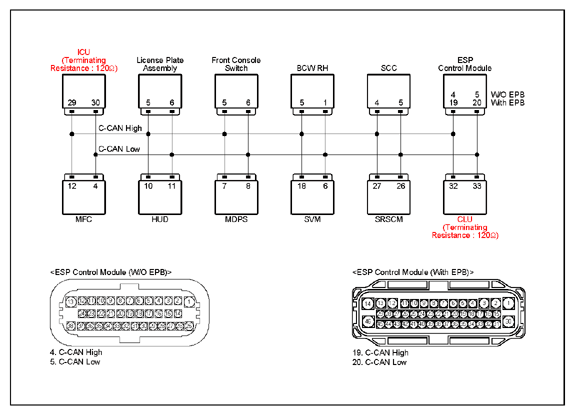

G15727496Courtesy of KIA MOTORS AMERICA, INC.

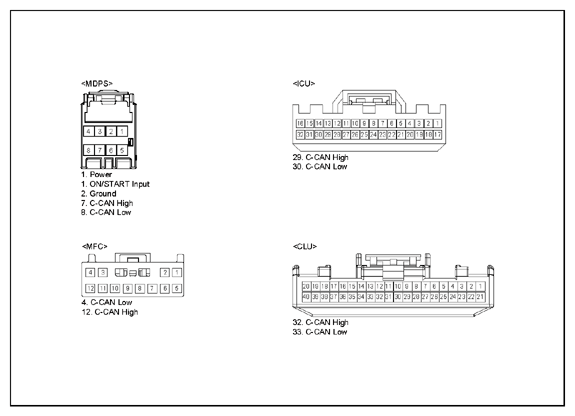

G15727497Courtesy of KIA MOTORS AMERICA, INC.
