LEMON Manuals: Even more car manuals for everyone
Home >> Kia >> 2024 >> Telluride SX X-Line >> Repair and Diagnosis >> Steering >> Electronic Steering >> Motor Driven Power Steering System Diagnosis >> DTC C1659-87: CAN Time-Out SAS >> Wiring Inspection >> Circuit Inspection >> Notes

Circuit Inspection: Notes

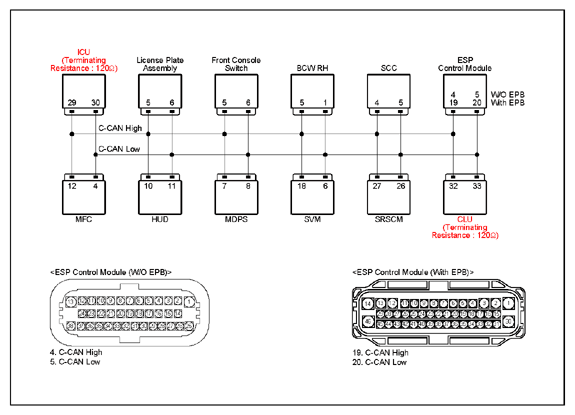

G15727488Courtesy of KIA MOTORS AMERICA, INC.

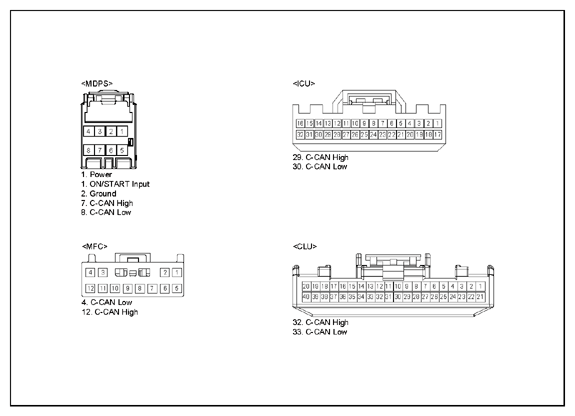

G15727489Courtesy of KIA MOTORS AMERICA, INC.
