Circuit Inspection: Notes
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|

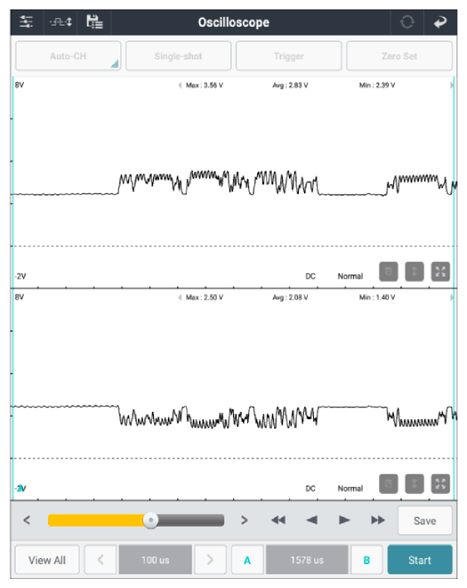

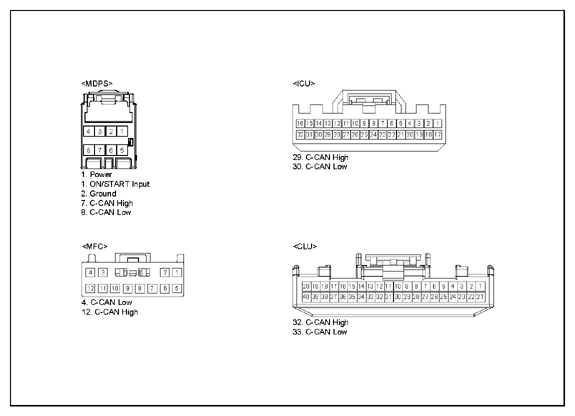

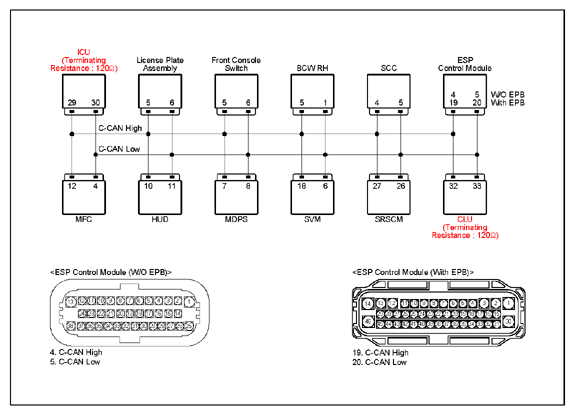

ICU connector | 29 (C-CAN high) | Chassis ground | - | Fig.1 |
| ICU connector | 30 (C-CAN low) | Chassis ground | - | ||
Good
- Go to "CAN INSPECTION " procedure.
No Good
- Repair as necessary and then Go to "VERIFICATION OF REPAIR " procedure.
