Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Steering Angle Sensor (SAS) Calibration" in "Vehicle S/W management" with KDS.
 Fig.1 to 4

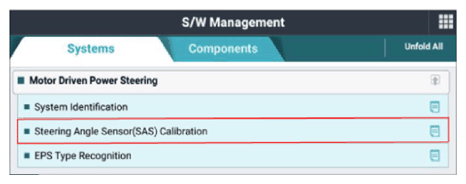

G15727413Courtesy of KIA MOTORS AMERICA, INC.

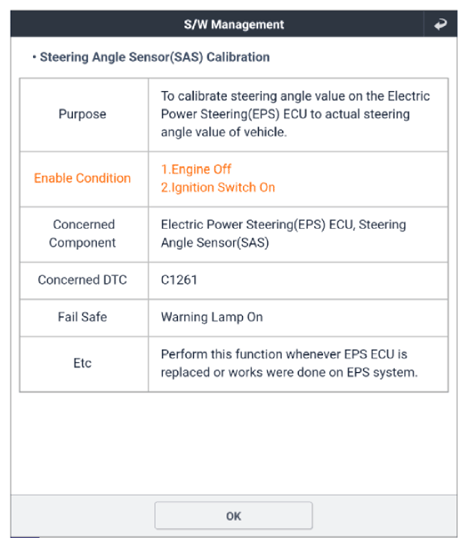

G15727414Courtesy of KIA MOTORS AMERICA, INC.

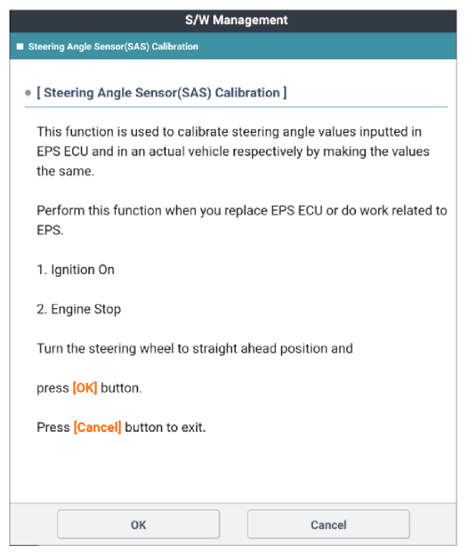

G15727415Courtesy of KIA MOTORS AMERICA, INC.
G15727416Courtesy of KIA MOTORS AMERICA, INC.
