Home >> Kia >> 2024 >> Telluride SX X-Line >> Repair and Diagnosis >> Restraints >> Air Bag, SRS >> Occupant Detection Sensor Diagnosis >> DTC B1767-2F: OCS Algo Cut Off >> Wiring Inspection >> Body Sensor Reset

Body Sensor Reset

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Body Sensor Reset" in "Vehicle S/W management".
 Fig.1 to 6

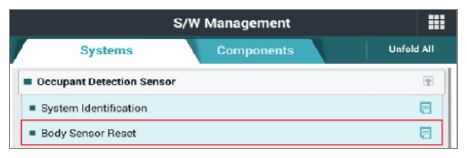

G15720269Courtesy of KIA MOTORS AMERICA, INC.

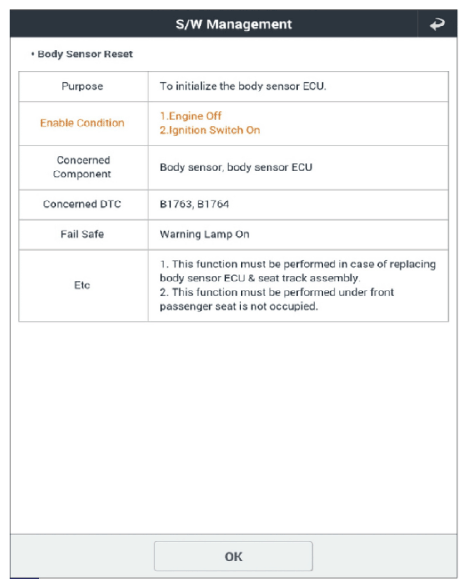

G15720270Courtesy of KIA MOTORS AMERICA, INC.

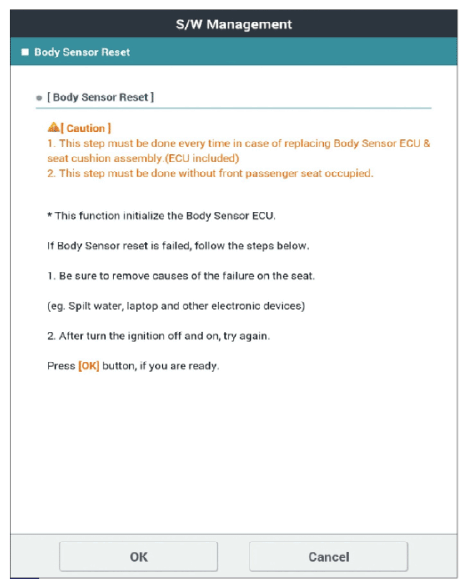

G15720271Courtesy of KIA MOTORS AMERICA, INC.

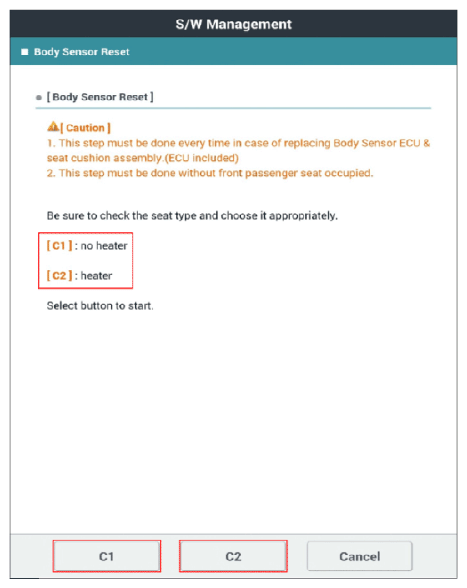

G15720272Courtesy of KIA MOTORS AMERICA, INC.
G15720273Courtesy of KIA MOTORS AMERICA, INC.
G15720274Courtesy of KIA MOTORS AMERICA, INC.
