Body Sensor Reset

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Body Sensor Reset" in "Vehicle S/W management".
 Fig.1 to 6

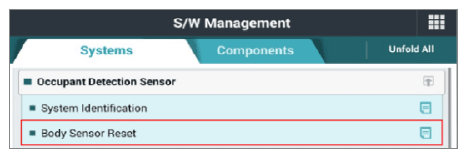

G15720260Courtesy of KIA MOTORS AMERICA, INC.

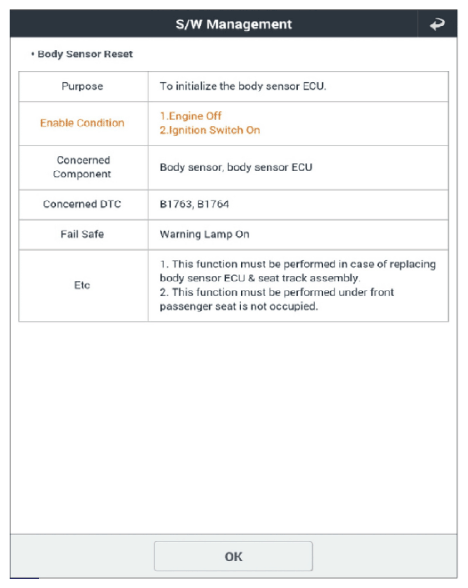

G15720261Courtesy of KIA MOTORS AMERICA, INC.

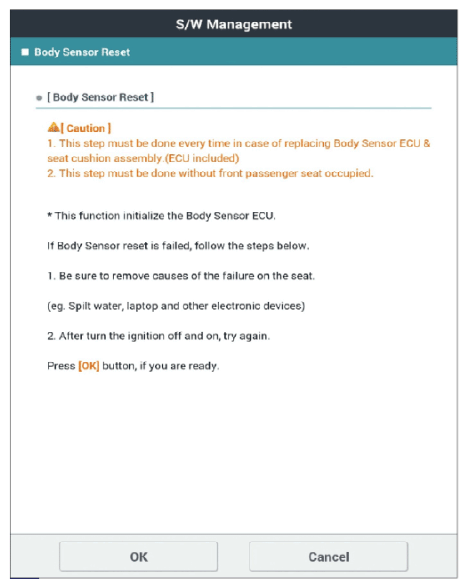

G15720262Courtesy of KIA MOTORS AMERICA, INC.

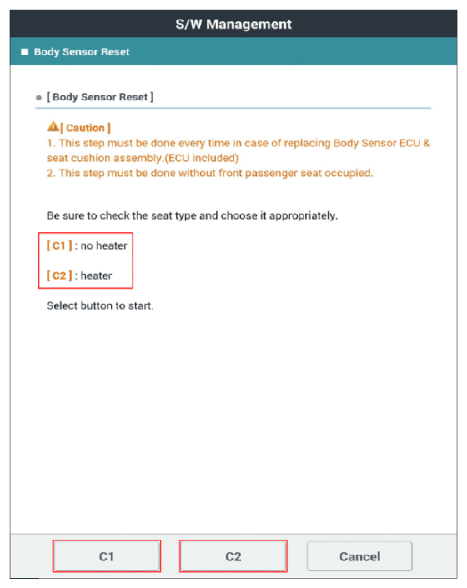

G15720263Courtesy of KIA MOTORS AMERICA, INC.
G15720264Courtesy of KIA MOTORS AMERICA, INC.
G15720265Courtesy of KIA MOTORS AMERICA, INC.
