Home >> Kia >> 2024 >> Telluride SX X-Line >> Repair and Diagnosis >> Restraints >> Air Bag, SRS >> Occupant Detection Sensor Diagnosis >> DTC B1763-00: OCS ECU Defect >> DTC Inspection >> Body Sensor Reset

Body Sensor Reset

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Body Sensor Reset" in "Vehicle S/W management".
 Fig.1 to 6

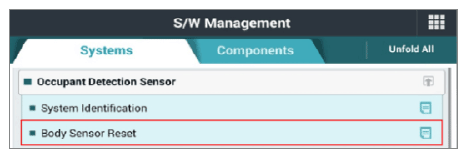

G15720250Courtesy of KIA MOTORS AMERICA, INC.

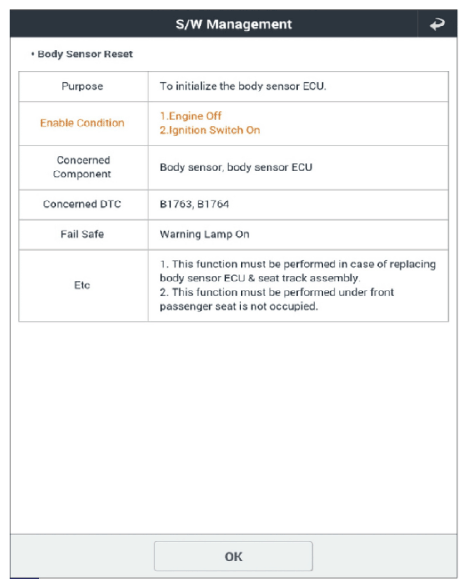

G15720251Courtesy of KIA MOTORS AMERICA, INC.

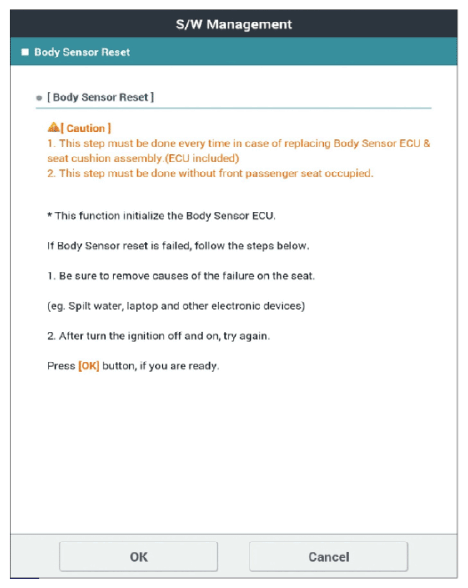

G15720252Courtesy of KIA MOTORS AMERICA, INC.

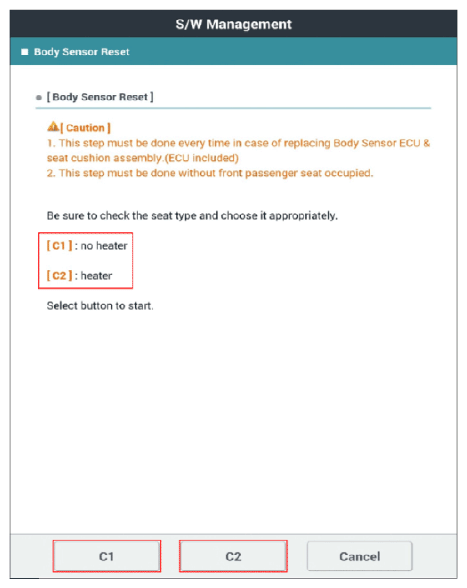

G15720253Courtesy of KIA MOTORS AMERICA, INC.
G15720254Courtesy of KIA MOTORS AMERICA, INC.
G15720255Courtesy of KIA MOTORS AMERICA, INC.
