Body Sensor Reset

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Body Sensor Reset" in "Vehicle S/W management".
 Fig.1 to 6

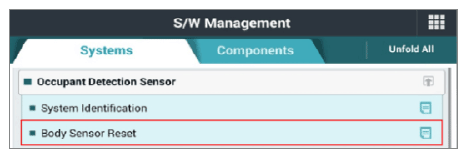

G15720241Courtesy of KIA MOTORS AMERICA, INC.

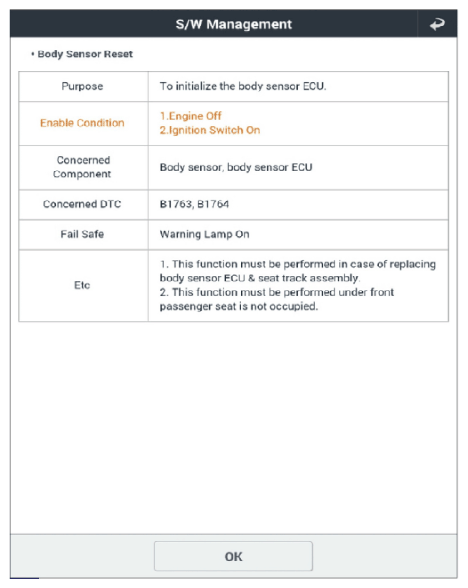

G15720242Courtesy of KIA MOTORS AMERICA, INC.

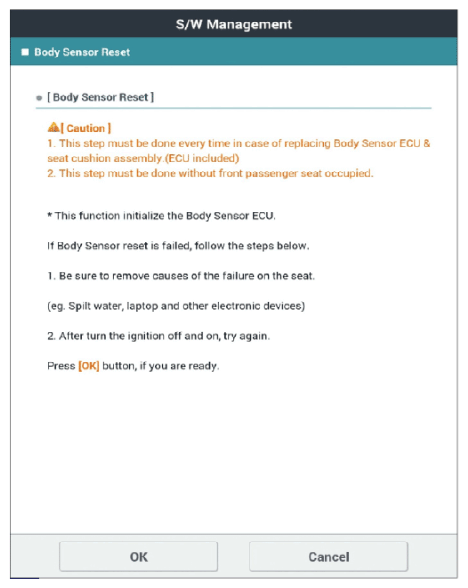

G15720243Courtesy of KIA MOTORS AMERICA, INC.

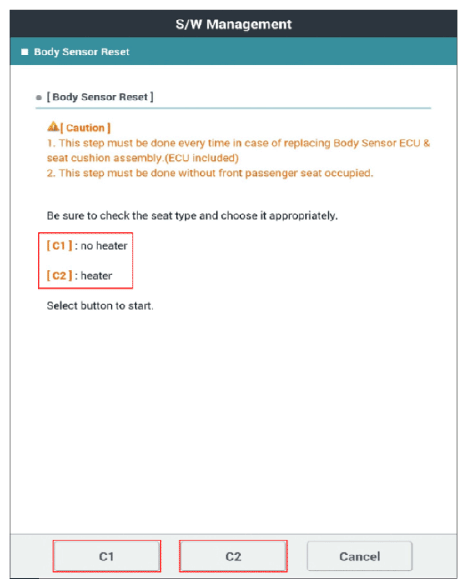

G15720244Courtesy of KIA MOTORS AMERICA, INC.
G15720245Courtesy of KIA MOTORS AMERICA, INC.
G15720246Courtesy of KIA MOTORS AMERICA, INC.
