Body Sensor Reset

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Body Sensor Reset" in "Vehicle S/W management".
 Fig.1 to 6

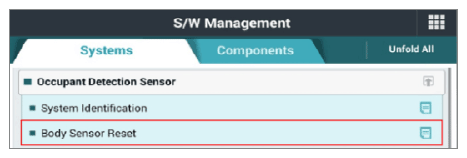

G15720231Courtesy of KIA MOTORS AMERICA, INC.

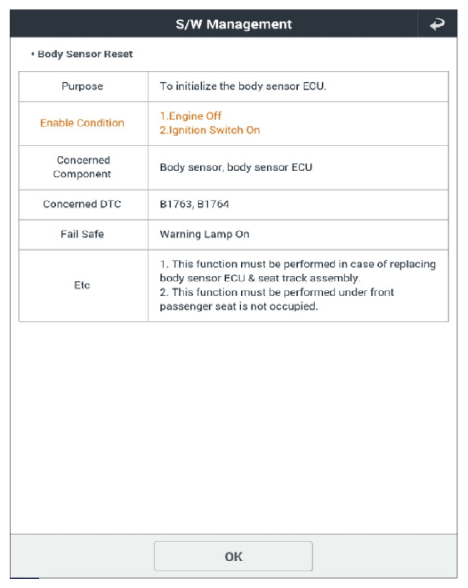

G15720232Courtesy of KIA MOTORS AMERICA, INC.

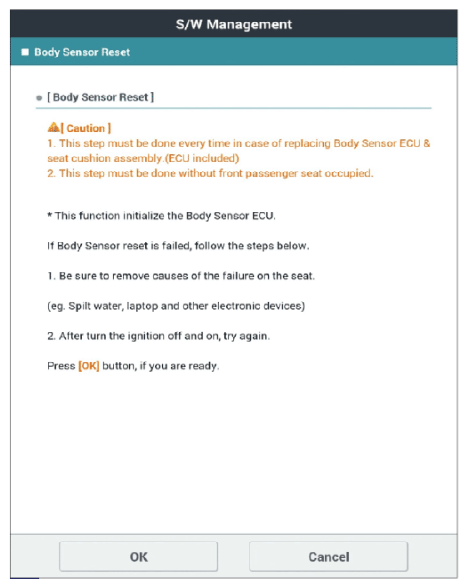

G15720233Courtesy of KIA MOTORS AMERICA, INC.

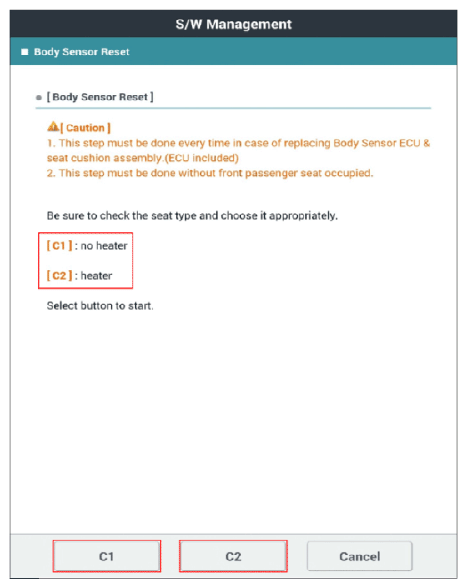

G15720234Courtesy of KIA MOTORS AMERICA, INC.
G15720235Courtesy of KIA MOTORS AMERICA, INC.
G15720236Courtesy of KIA MOTORS AMERICA, INC.
