Home >> Kia >> 2024 >> Telluride SX X-Line >> Repair and Diagnosis >> Restraints >> Air Bag, SRS >> Airbag System Diagnosis (4 Of 4) >> DTC B2618-00: Cluster Airbag Warning Lamp CAN Message Time-Out By CAN Bus >> Wiring Inspection >> Circuit Inspection >> Notes

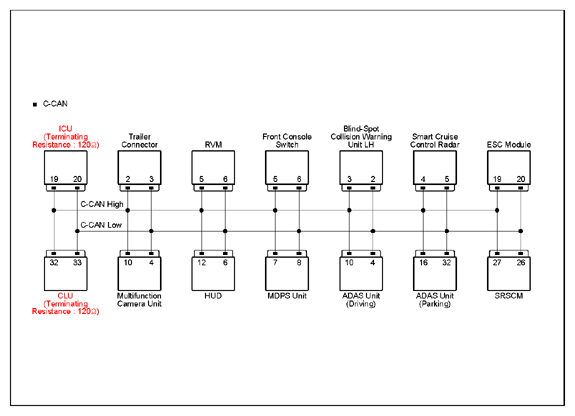

Circuit Inspection: Notes

G15717826Courtesy of KIA MOTORS AMERICA, INC.
