ACU Variant Coding

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. ACU variant coding (Off-line type on KDS-this can be used when not connecting to internet) in the "Vehicle S/W Management" with KDS.
  3. Monitor "Diagnostic Trouble Codes (DTC)" with KDS and verify that any DTC is stored.
 Fig.1 to 7
G15717758Courtesy of KIA MOTORS AMERICA, INC.

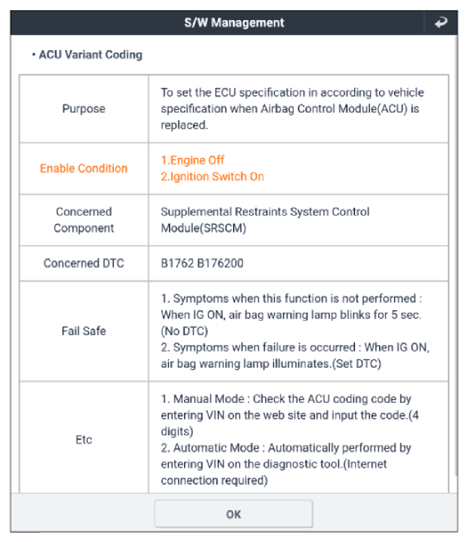

G15717759Courtesy of KIA MOTORS AMERICA, INC.

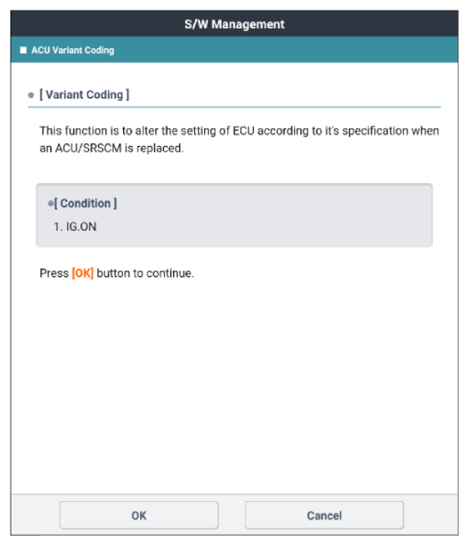

G15717760Courtesy of KIA MOTORS AMERICA, INC.

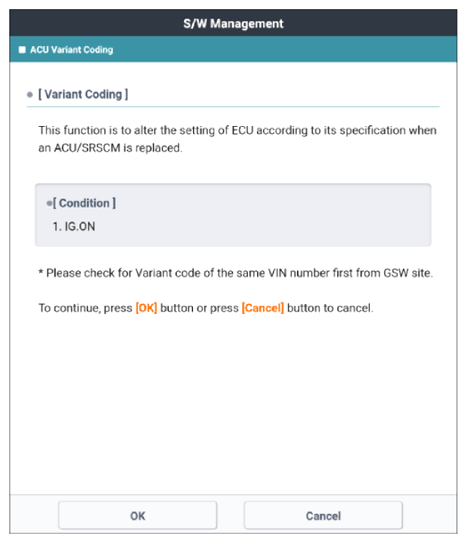

G15717761Courtesy of KIA MOTORS AMERICA, INC.

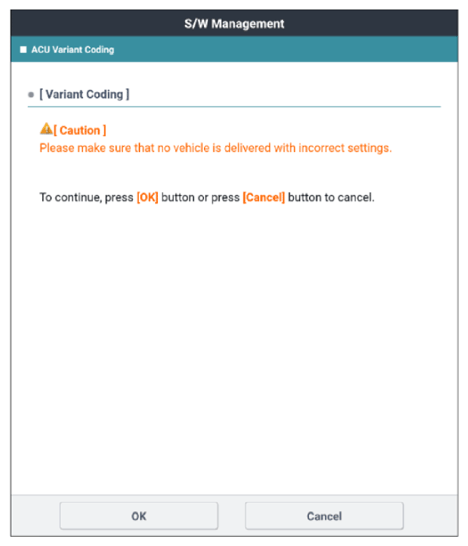

G15717762Courtesy of KIA MOTORS AMERICA, INC.

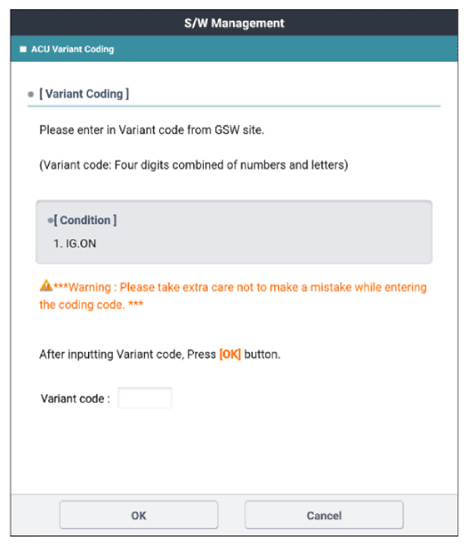

G15717763Courtesy of KIA MOTORS AMERICA, INC.

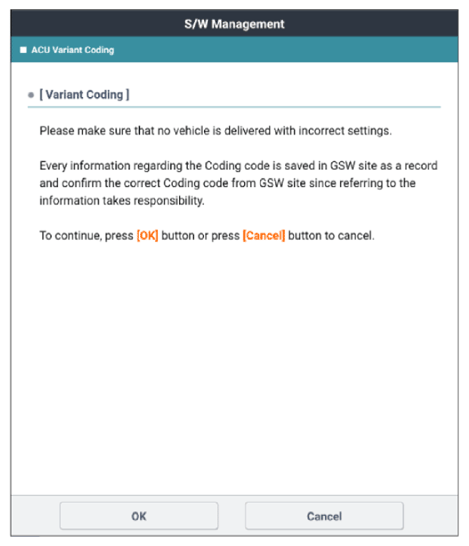

G15717764Courtesy of KIA MOTORS AMERICA, INC.
