Home >> Kia >> 2024 >> Telluride SX X-Line >> Repair and Diagnosis >> Restraints >> Air Bag, SRS >> Airbag System Diagnosis (4 Of 4) >> DTC B1713-00: Knee Airbag - Driver Resistance Circuit Short To Ground >> Wiring Inspection >> Circuit Inspection >> Notes

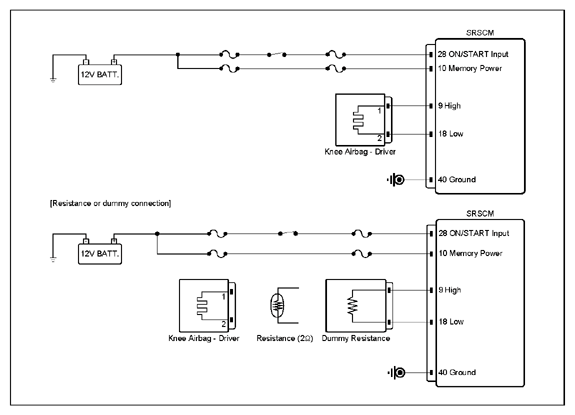

Circuit Inspection: Notes

G15717704Courtesy of KIA MOTORS AMERICA, INC.
