Home >> Kia >> 2024 >> Telluride SX X-Line >> Repair and Diagnosis >> Restraints >> Air Bag, SRS >> Airbag System Diagnosis (4 Of 4) >> DTC B1711-00: Knee Airbag - Driver Resistance Too High >> Wiring Inspection >> Circuit Inspection >> Notes

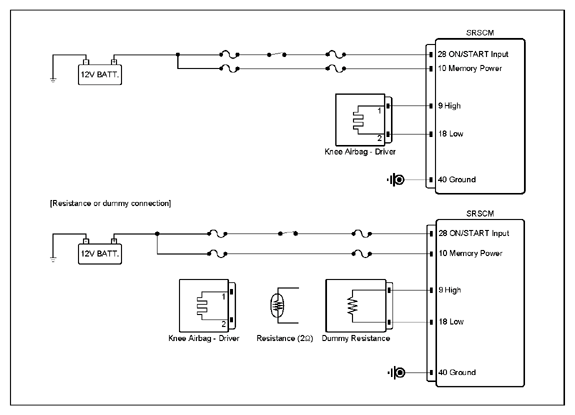

Circuit Inspection: Notes

G15717692Courtesy of KIA MOTORS AMERICA, INC.
